• C7B250-CB-ML 工业级主机板

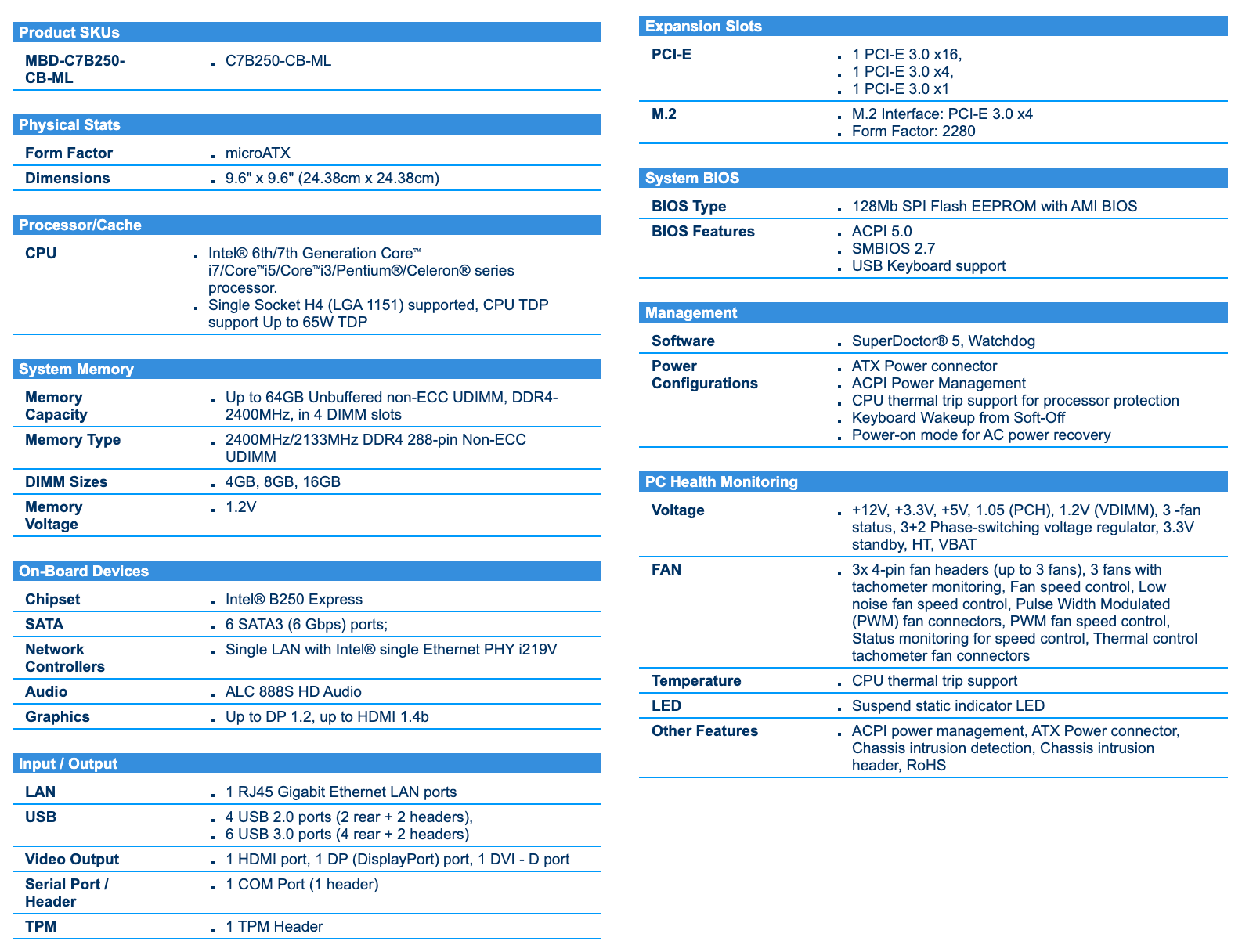

C7B250-CB-ML 工业级主机板

Intel® B250 Express
Intel® 6th/7th Generation Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 65W TDP
Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2280
1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
Single LAN with Intel® single Ethernet PHY i219V
型号 : C7B250-CB-ML

The C7B250-CB-ML motherboard supports a single 6th and 7th Genera- tion Intel® CoreTM i7/i5/i3, Pentium®/Celeron® processor in an LGA 1151 (H4) socket. With the Intel B250 Express chipset built in, the C7B250-CB-ML motherboard offers substantial system performance and storage capability for overclocking platforms in a small form factor. Please refer to our website (http://www.supermicro.com/products/) for proces- sor and memory support updates.
