• MBD-X11SCA (Workstation)

MBD-X11SCA (Workstation)

Intel® 8th/9th Generation Core™ i9/Core™, i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP. Intel® C246 Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots. 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit, M.2 Interface: 2 PCI-E 3.0 x4, M.2 Form Factor: 2242/2260/2280/22110, M.2 Key: M-Key, M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2, U.2 Interface: 1 PCI-E 3.0 x4, 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only), Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10, Single LAN with Intel® Ethernet Controller I210-AT, Single LAN with Intel® PHY I219LM LAN controller, Support vPro
型号 : X11SCA

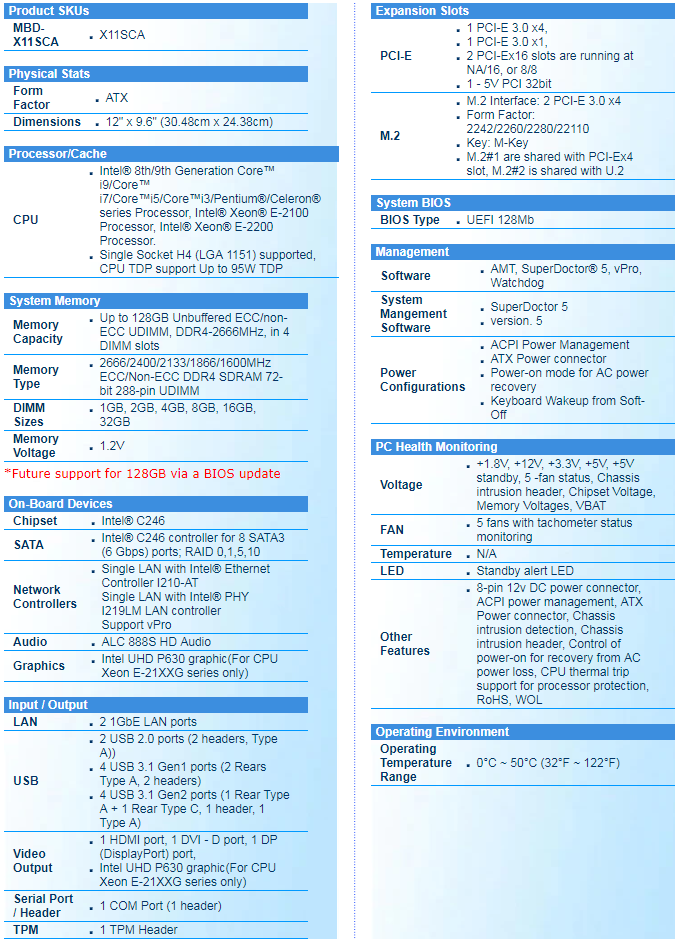

Specifications


  • Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
  • Intel® C246
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 1 PCI-E 3.0 x4,
  • 1 PCI-E 3.0 x1,
  • 2 PCI-Ex16 slots are running at NA/16, or 8/8
  • 1 - 5V PCI 32bit
  • M.2 Interface: 2 PCI-E 3.0 x4
  • M.2 Form Factor: 2242/2260/2280/22110
  • M.2 Key: M-Key
  • M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
  • U.2 Interface: 1 PCI-E 3.0 x4
  • 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
  • Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
  • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Intel® PHY I219LM LAN controller
  • Support vPro


Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCA 1 X11SCA Motherboard
SATA cable CBL-0044L 2 SATA 3 Cable
IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield
M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCA 1 X11SCA Motherboard
SATA cable CBL-0044L 6 SATA 3 Cable
IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield
M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder
Quick Reference Guide MNL-2087-QRG 1 X11SCA Series Quick Reference Guide
