SYS-511R-W

1U WIO with 4 hot-swap 3.5" SAS/SATA (2 NVMe hybrid) bays, up to 2 PCIe 5.0 slots and 1 PCIe 4.0 slot
型号 : SYS-511R-W
Product SKUs
SuperServer SYS-511R-W
Motherboard
Super X13SCW-F
Processor
CPU
  • Single V0 (LGA-1700)
  • Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors
Core Count
  • Up to 8C/16T; Up to 24MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C266
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 ports(header)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 2 USB 3.2 Gen2 Type-A ports(Rear)
  • 1 USB 3.2 Gen2 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(header)
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 6 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 34.5 lbs (15.46 kg)
  • Net Weight: 21.5 lbs (9.75 kg)
Available Color
  • Black

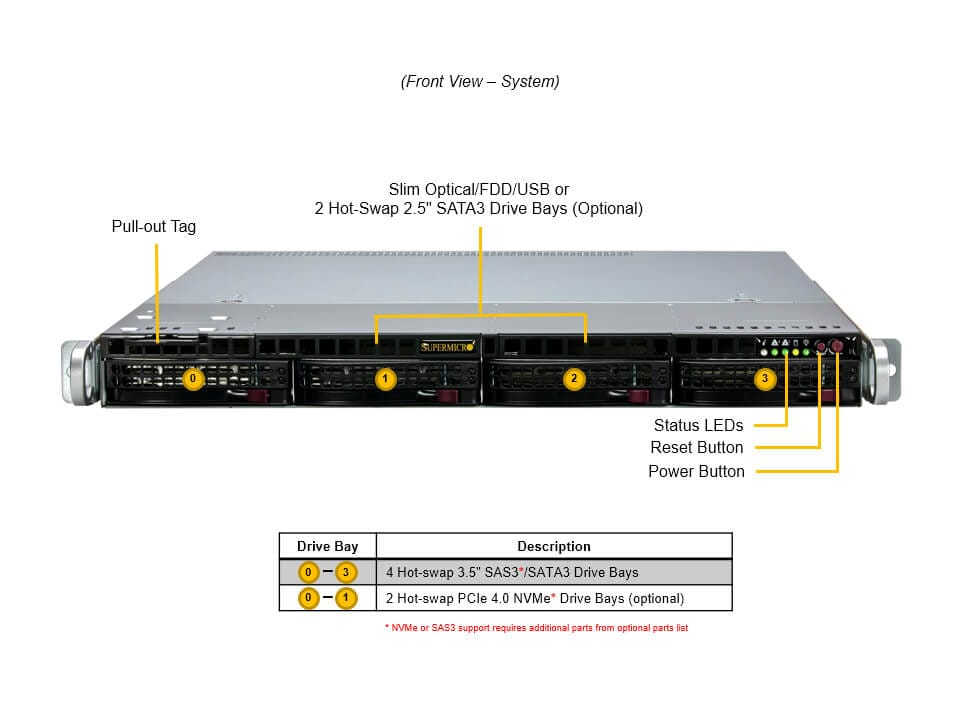

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED

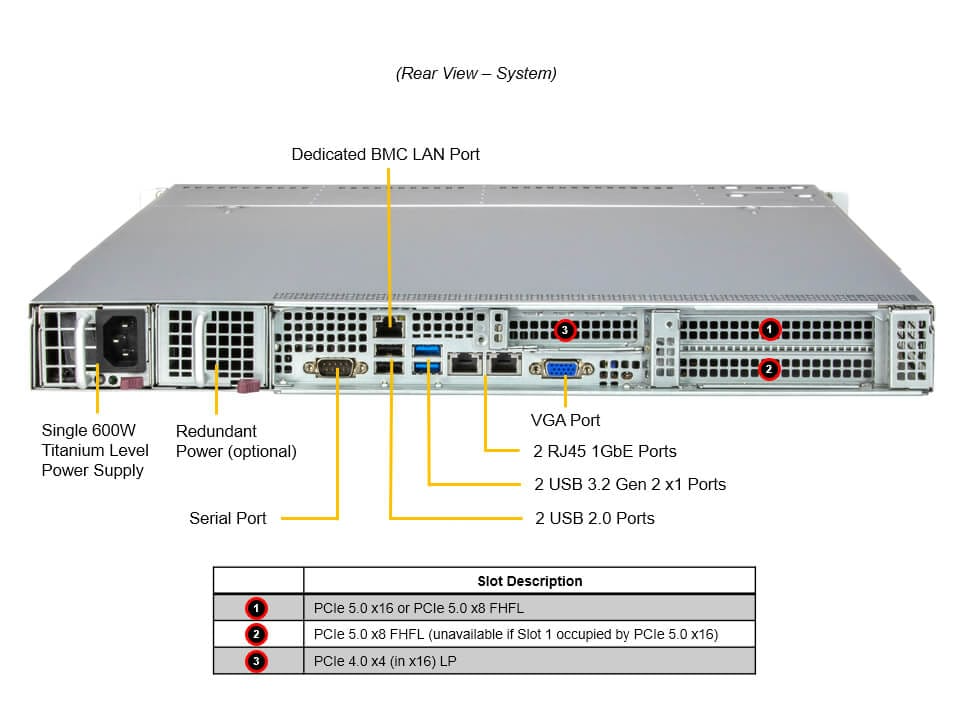

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 (in x16) LP slot
  • Option A
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 1 PCIe 4.0 x4 (in x16) LP slot
  • View AOC Options

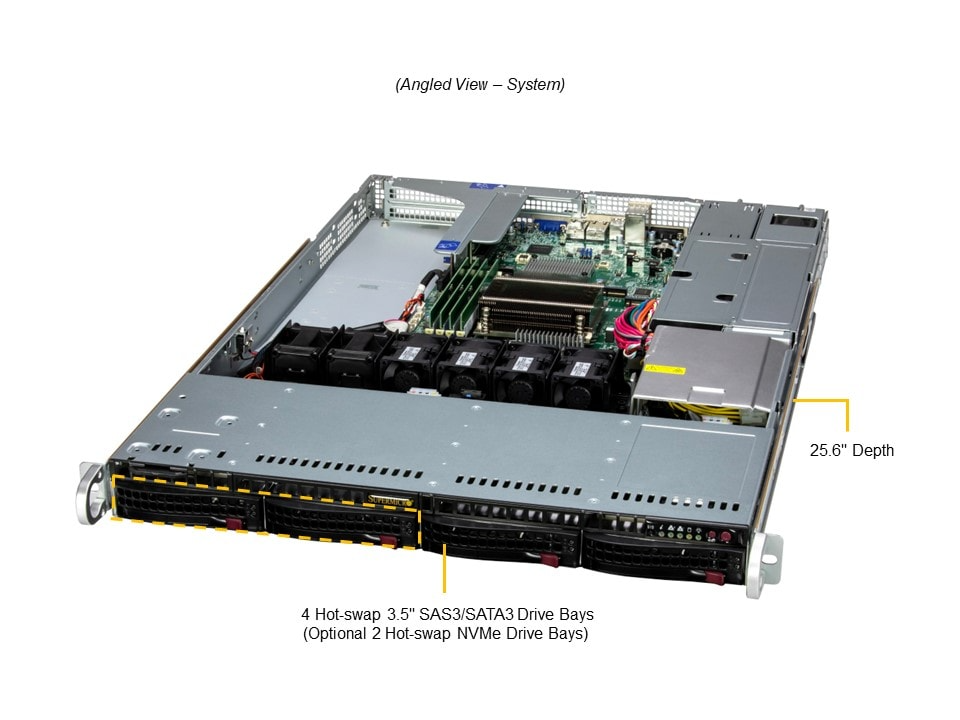

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • Option A: Total 4 bays
    • 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays
    • 2 front hot-swap 3.5" SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
Peripheral Bays
  • 2 2.5" bays (optional)
System Cooling
Fans
  • Up to 2 AOC cooling Fan(s) (optional)
  • Up to 4 counter-rotation PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL) 54.5 x 40.25 x 322 mm
Input 600W: 200-240Vac / 50-60Hz
600W: 100-127Vac / 50-60Hz
600W: 200-240Vdc / 50-60Hz
+12V Max: 50A / Min: 0A (100Vac-127Vac)
Max: 50A / Min: 0A (200Vac-240Vac)
Max: 50A / Min: 0A (200Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  1. Single Socket V0 (LGA-1700) supports Intel® Xeon® 6300-series / E-2400 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
  3. 1 PCIe 5.0 x16 or 2 PCIe 5.0 x8 (FHFL);
    1 PCIe 4.0 x4 (in x16 LP)
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. Default single Titanium 600W Power Supply; Optional redundant power by adding 1x Power Supply Module
