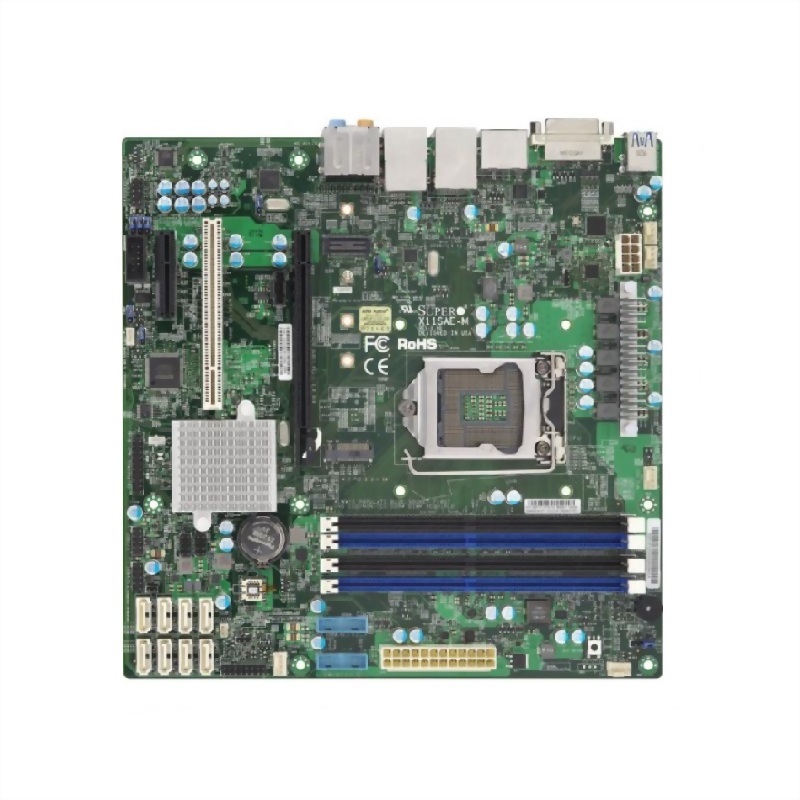

MBD-X11SAE-M 工作站主机板

-Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-Intel® C236 chipset
-Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
-1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
-Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM
-8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)
-6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

型号 : X11SAE-M

数量 :

Product SKUs

MBD-X11SAE-M	X11SAE-M


Physical Stats

Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)


Processor/Cache

CPU	Intel® 6th/7th Generation Core i3 series, Intel® 6th/7th Generation Core i5 series, Intel® 6th/7th Generation Core i7 series, Intel® Xeon® processor E3-1200 v6/v5. Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series


System Memory

Memory Capacity	Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C236
SATA	Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCI-E M.2(PCI-E x4, 2242/2260/2280/22110)(No Raid Support)
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
Audio	ALC 888S HD Audio
Graphics	*DP support up to DP1.2, HDMI support up to HDMI1.4*


Input / Output

LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.1 Gen1 ports(2 rears, 4 via headers) 2 USB 3.1 Gen2 ports , 2 Type A); 2 USB 3.1 (10 Gb/s) ports (2 Rear)
Video Output	1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port, *DP support up to DP1.2, HDMI support up to HDMI1.4*
Serial Port / Header	1 COM Port (1 header)
TPM	1 TPM Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x16, 1 PCI-E 3.0 x41 - 5V PCI 32bit
M.2	M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2242/2260/2280 Key: M-Key


System BIOS

BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup


Management

Software	AMT, SuperDoctor® 5, vPro, Watchdog
Power Configurations	ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Temperature	CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support
LED	CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features	8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL


Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)

Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM
8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)
6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SAE-M	1	X11SAE-M Motherboard
SATA cable	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
IO shield	MCP-260-00063-1N	1	X11SAE-M I/O Shield

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SAE-M	1	X11SAE-M Motherboard
Quick Reference Guide	MNL-1819-QRG	1	X11SAE-M Quick Reference Guide
SATA cable	CBL-0044L	4	57.5CM SATA FLAT S-S PBF
IO shield	MCP-260-00063-1N	1	X11SAE-M I/O Shield
