MBD-X11SCQ 工业级主机板

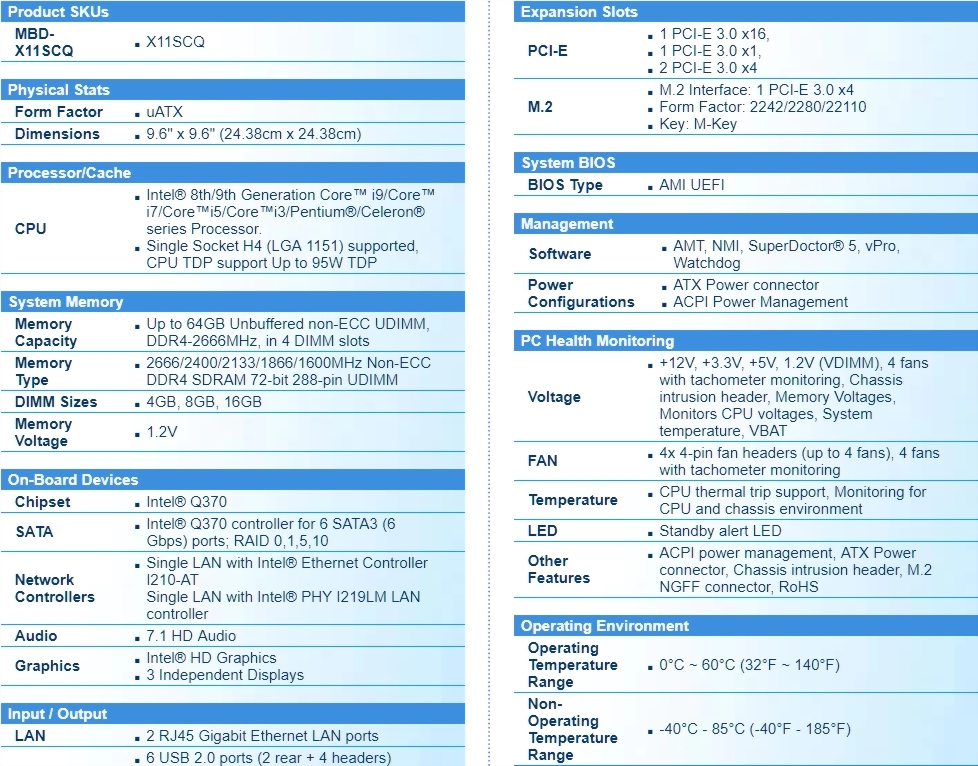

Intel® 8th/9th Generation Core™ i9/Core™,i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP,Intel® Q370,Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots:1 PCI-E 3.0 x16,1 PCI-E 3.0 x1,2 PCI-E 3.0 x4
型号 :
X11SCQ
- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
- Intel® Q370
- Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
-
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x1,
2 PCI-E 3.0 x4
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2242/2280/22110
M.2 Key: M-Key -

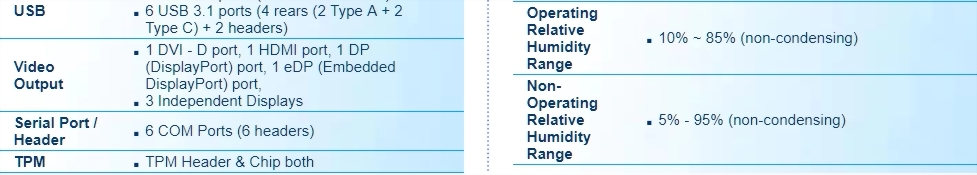

1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays - Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
-
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCQ | 1 | X11SCQ Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00125-0N | 1 | Standard I/O Shield for X11SCQ/-L with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCQ | 1 | X11SCQ Motherboard |
| QRG | MNL-2110-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 6 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00125-0N | 1 |
Standard I/O Shield for X11SCQ/-L with EMI Gasket |
