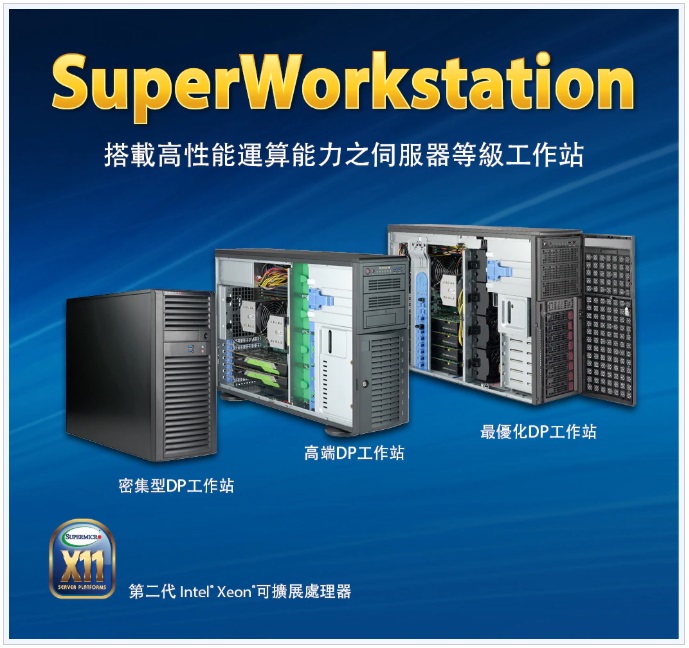

Super Workstation



美超微的超级工作站系统针对需要强大运算或图形功能(包括渲染、影像处理和工程任务)的应用进行了优化。

超级工作站系统由近 20 个独立的超级工作站组成,拥有单处理器或双处理器平台、强大的内存容量(12 个 DIMM 插槽,多达 4 个 DDR4-2933MHz 内存)、7 个用于 GPU / 辅助处理器的 PCI-E 3.0 插槽、双千兆乙太网 LAN 端口和一个 10 千兆 LAN 端口。超级工作站系统还提供 7.1 高清音频、多达 8 个 USB 端口和 205W CPU 支持,适用于需要高核数的应用。

美超微的超级工作站系统是高度可定制的,可专门为建筑工程和施工、传媒和娱乐、工程和制造、产品设计和模拟、石油和天然气以及深度学习应用而构建。


  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 12 DIMMs; up to 3TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
  • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
  • 1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
  • 1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
  • 2 Super quiet PWM fans and 1 Super quiet rear fan
  • 1200W Platinum Level Power Supply
SYS-5049A-T





  • Entry-Level Worksation, CAD/CAM/CAE, Digital Imaging, 3D Simulation and Rendering, Cost effective UP platform
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
  • Up to 64GB ECC/non-ECC UDIMM in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
  • 4 Fixed 3.5" and 4 optional 2.5" drive bays, 2 standard 5.25" peripheral drive bays, 1 Internal 3.5" fixed device bay
  • 2 PCI-E 3.0 x16 (NA/16 or 8/8), 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI 32bit 5V
  • 2 M.2 (M key, 2260/2280/22110), 1 U.2 for optional expanded storages
  • 2 USB Type A & Type C, 4 USB 3.1 Gen1 (2 rear + 2 front), 2 USB 2.0 (front)
  • 1 HDMI 2.0a port, 1 DVI-D port, 1 DP 1.2 port, 1 TPM header, 1 COM header, 7.1 HD Audio
  • 500W Bronze Certified High Efficient power supply
 SYS-5039C-T




  • Designed for Content Creation, Engineering and  Scientific applications
  • Single socket R4 supports Intel® Xeon® processor W Family; Intel® C422 Chipset
  • 4 Fixed 3.5" drive bays; 2 optional 5.25" Peripheral drive bays
  • 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 slots, 2 U.2, 2 M.2 M key
  • Up to 512GB Registered ECC LRDIMMs, up to DDR4‑2666MHz; in 8 DIMM slots
  • Dual GbE LAN ports
  • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
  • 2 USB 3.1 (2 Type A), 6 USB 3.0 (4 rear, 2 headers), 6 USB 2.0 (2 rear, 4 headers)
  • ALC 1220 7.1 HD Audio
  • 1x 12cm front cooling fan
  • 900W High Efficiency Power Supply
 SYS-5039A-I


Super Workstation 5049A-T

Super Workstation 5049A-T

Super Workstation 5039A-i

Super Workstation 5039A-i

Super Workstation 5039C-T

Super Workstation 5039C-T
