SYS-531A-I

UP mid-tower workstation for 3D and VR content development

型号 : SYS-531A-I

数量 :

规格
特点

Product SKUs
SuperWorkstation SYS-531A-I

Processor
CPU	Single processor(s) Intel® Xeon® W-2500/W-2400 processors
Core Count	Up to 26C/52T; Up to 48.75MB Cache
Note	Supports up to 250W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 5000 Ada, RTX 4500 Ada, RTX 2000 Ada, A1000, RTX 4000 Ada Generation, RTX A5500, RTX A6000, RTX A4500, RTX 6000 Ada Generation View GPU Options

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® W790
Network Connectivity	1 RJ45 10GbE with Marvell® AQC113 1 RJ45 1GbE with Intel® I210-AT View AOC Options

Input / Output
USB	2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front)
Video	1 VGA port
Serial	1 COM port(rear)
Audio	7.1 HD Audio

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Supply Chain Security: Remote Attestation Runtime BMC Protections

PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT

Chassis
Form Factor	Mid-Tower
Model	CSE-735D4-1K26B

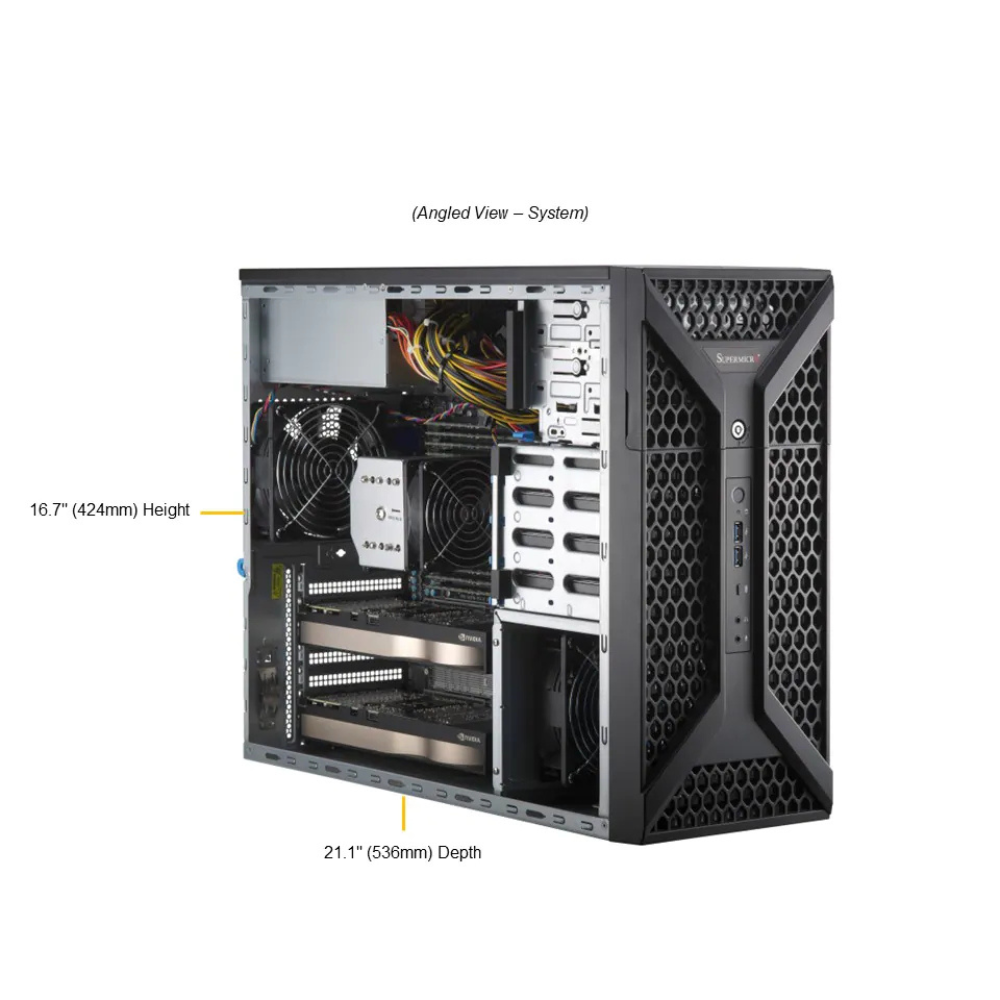

Dimensions and Weight
Height	16.7" (424 mm)
Width	7.6" (193 mm)
Depth	20.68" (525.3 mm)
Package	21.38" (H) x 11.97" (W) x 25.28" (D)
Weight	Gross Weight: 30 lbs (13.61 kg) Net Weight: 27 lbs (12.25 kg)
Available Color	black

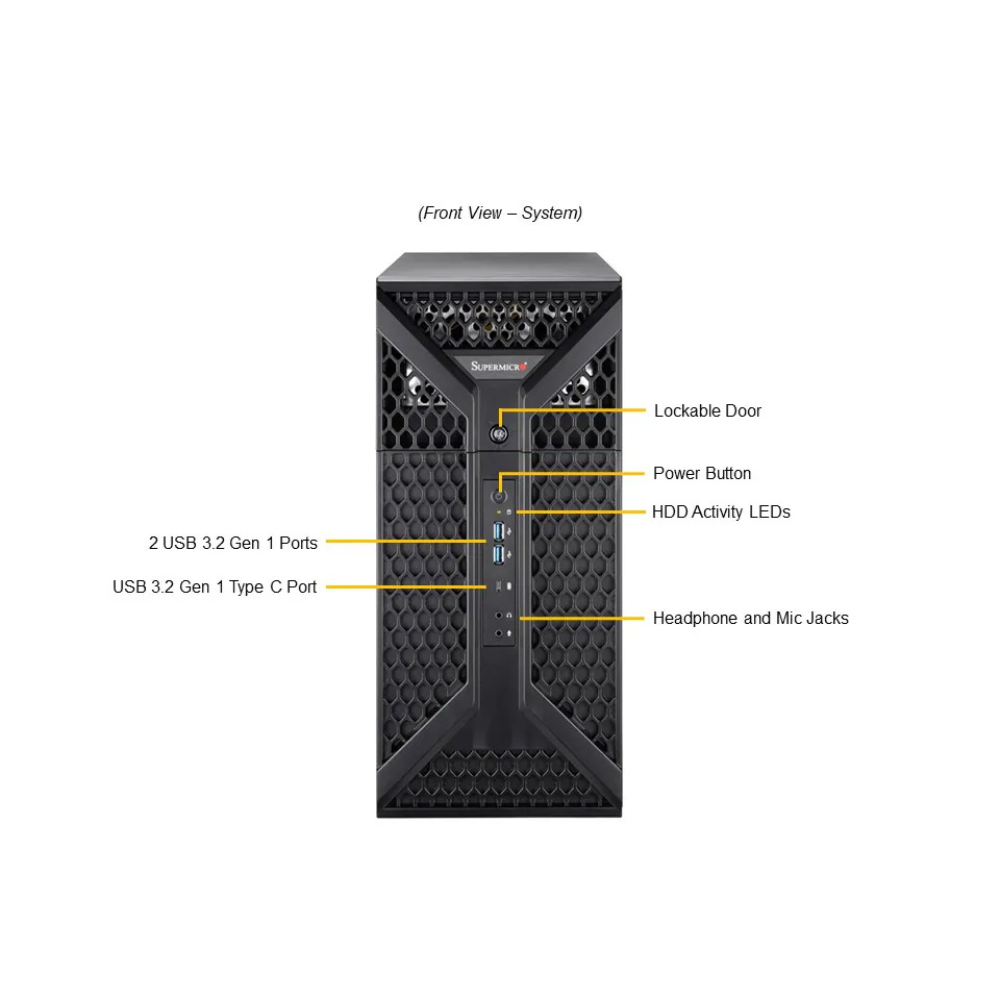

Front Panel
LED	HDD activity LED
Buttons	Power On/Off button

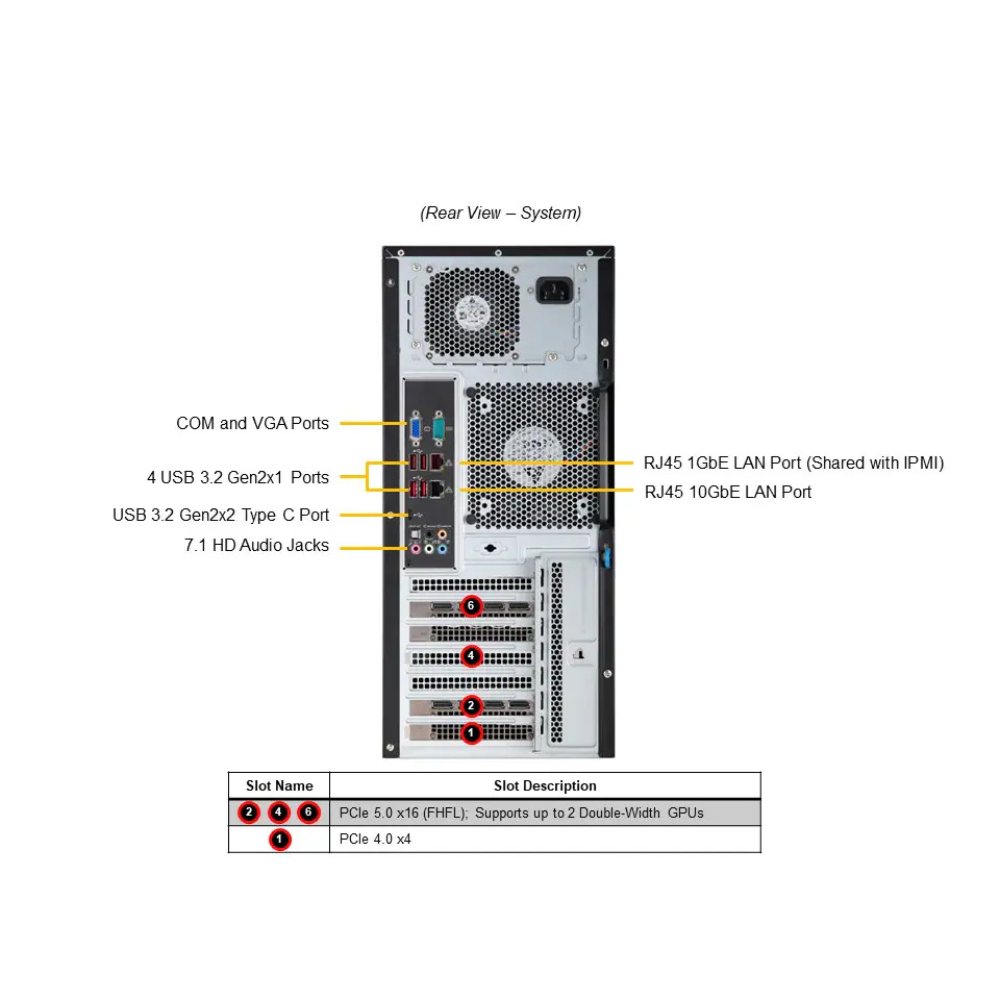

Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 4.0 x4 FHFL slot 3 PCIe 5.0 x16 FHFL slots View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 internal fixed 3.5" SATA drive bays View Drive Options
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options
Peripheral Bays	2 5.25" bays

System Cooling
Fans	Up to 1x 120mm Fan(s) Up to 1x 120mm Fan(s)

Power Supply

1x 1200W Platinum Level (94%) power supply

Dimension (WxHxL)	150 x 86 x 185 mm
Input	1000W: 100-120Vac / 50-60Hz 100-240Vac 1200W: 120-240Vac / 50-60Hz
+12V	Max: 83A / Min: 1A (100Vac-120Vac) Max: 99A / Min: 1A (120Vac-240Vac)
5V SB	Max: 3A / Min: 0A
Output Type	24pin ATX
Certification	Platinum Level

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Socket E (LGA4677) support Intel® Xeon® W-2400 processors
Intel® W790
8 DIMMs
1x 1GbBaseT, 1x 10GbBaseT
4 3.5" SATA3 drive bays; ; 2 M.2 NVMe
1 120 mm Fan(s) ; 1 120 mm Fan(s)
1200W Power Supplies Platinum Level (92%+)
