• C7H61-L 工业级主机板

C7H61-L 工业级主机板

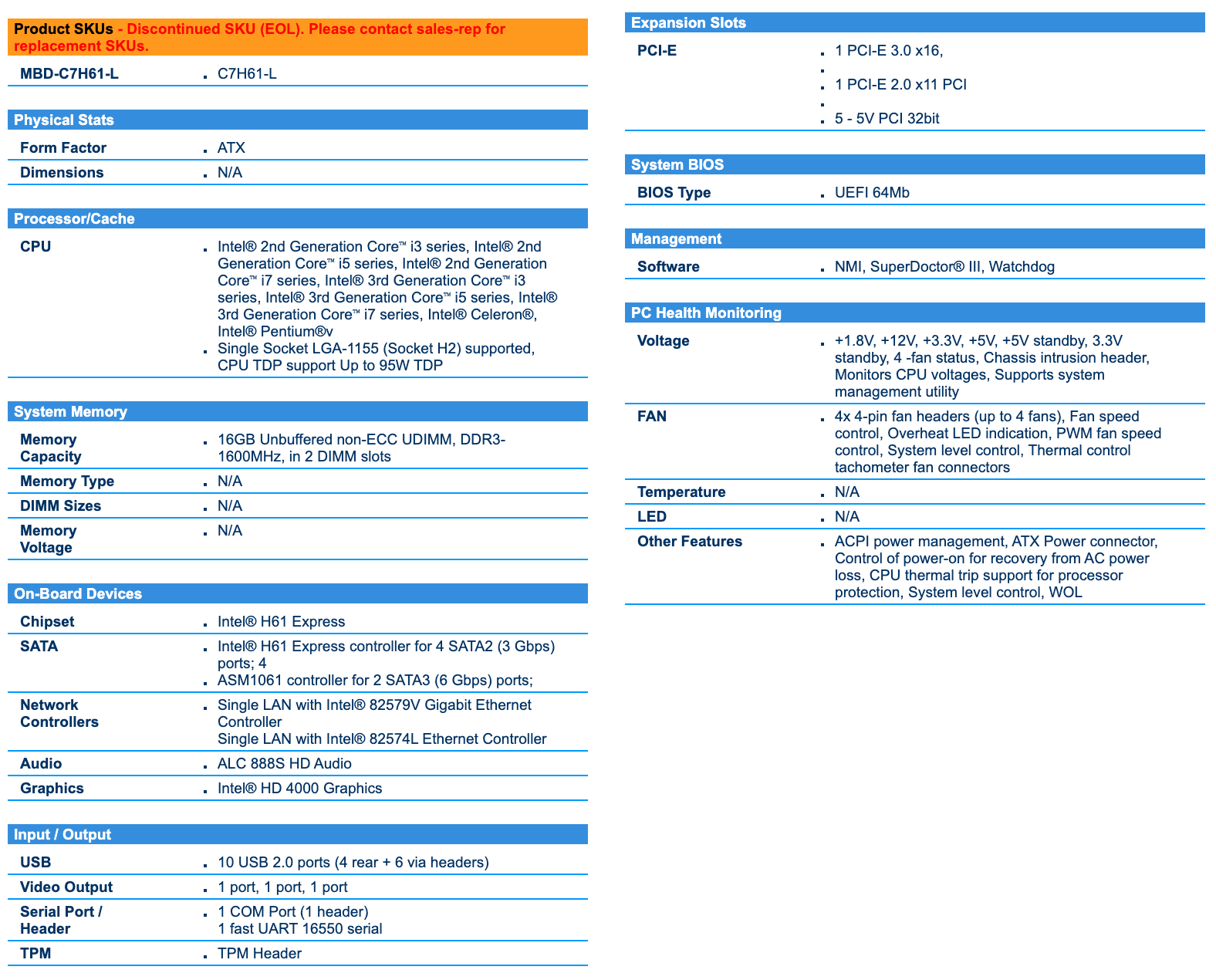

Intel® 2nd Generation Core™ i3 series, Intel® 2nd Generation Core™ i5 series, Intel® 2nd Generation Core™ i7 series, Intel® 3rd Generation Core™ i3 series, Intel® 3rd Generation Core™ i5 series, Intel® 3rd Generation Core™ i7 series, Intel® Celeron®, Intel® Pentium®v
Single Socket LGA-1155 (Socket H2) supported, CPU TDP support Up to 95W TDP
Intel® H61 Express
16GB Unbuffered non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 2.0 x11 PCI
5 - 5V PCI 32bit
1 port, 1 port, 1 port
Intel® H61 Express controller for 4 SATA2 (3 Gbps) ports; 4
ASM1061 controller for 2 SATA3 (6 Gbps) ports;
Single LAN with Intel® 82579V Gigabit Ethernet Controller
Single LAN with Intel® 82574L Ethernet Controller
型号 : C7H61-L

The Intel® H61 Express Chipset is an entry-level product designed to deliver the most critical features at the best possible price point. Based on the capabilities of this chipset, the C7H61 motherboard utilizes the chipset's design to deliver a cost-effective price point without sacrificing the needed performance for an entry-level or embedded platform.
