• AVO120-48S12 Series1/8砖电源模块

AVO120-48S12 Series1/8砖电源模块

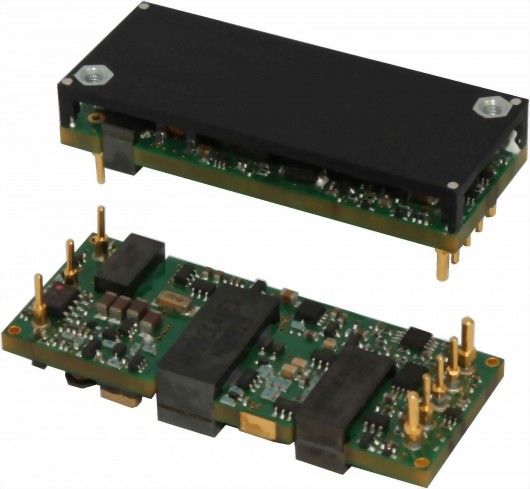

The AVO120 series eighth-brick isolated DC-DC converter is designed specifically to provide a regulated low noise 12 Vdc output for feeding downstream non-isolated point-of-load (POL) converters in systems with distributed power architectures (DPA).
型号 : avo120-48s12 series


Rated at 120 watts, it can deliver up to 10 amps. The converter has a wide 2:1 input range of 36 to 75 Vdc and is designed primarily for use with standard 48 V telecommunications equipment supplies.


The converter has a typical efficiency of 93% and accommodates an ambient operating temperature range of -40 to 85˚C. Its open-frame design is optimized for forced air or conduction cooling and an aluminum baseplate option is available for enhanced thermal performance. There is a choice of surface-mount or through-hole terminations. The conversion technology employs fixed frequency switching to help minimize external EMI filtering requirements.

Standard features include output trim, remote enable, undervoltage lockout and differential remote sense, with non-latching overvoltage and overtemperature protection. AVO120 series converters have an installed height of just 0.5 inch (12.7 mm), making them ideal for systems with demanding inter-board spacing requirements.
  • Total Max Power:
    120 W
  • Total Max Current:
    10 A
  • Input Voltage:
    36 V to 75 V
  • Output Voltage:
    12 V to 12 V
  • Outputs:
    Single
  • Size (L x W x H):
    2.280" x 0.900" x 0.374"
  • Warranty:
    2 years
  • Operating Temperature:
    -40°C to +85°C
  • Up to 10A output current
  • Ultra-high efficiency 93% typ. at full load
  • Wide input range: 36V ~ 75V
  • Excellent thermal performance
  • No minimum load requirement

  • Pre-bias function
  • RoHS 6 compliant
