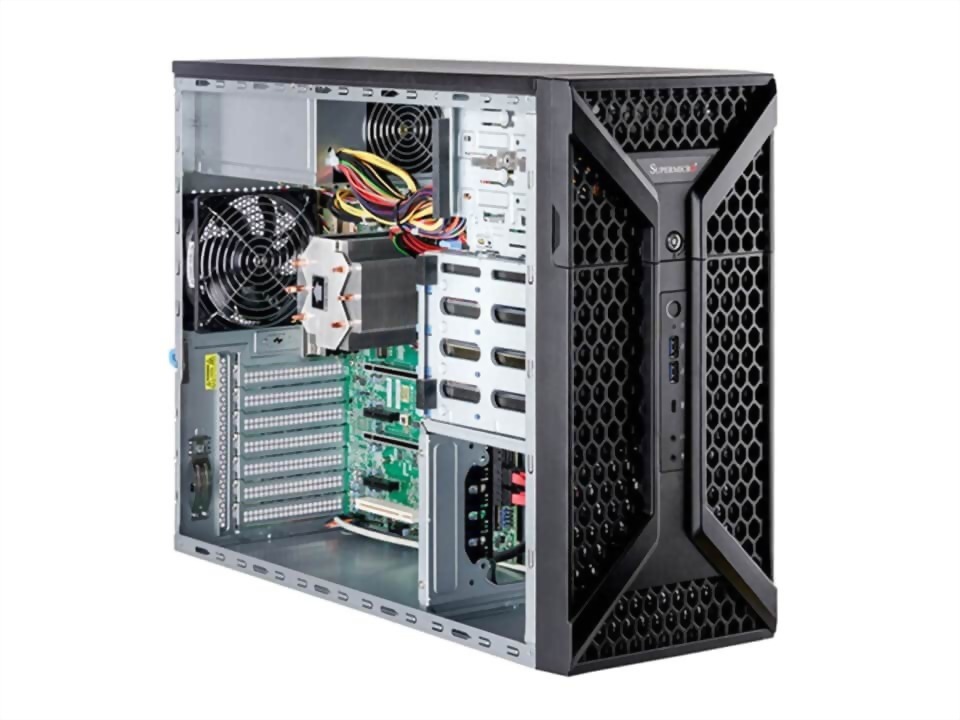

SYS-531A-IL

适用于 3D 设计与内容创作的单路中塔式工作站。

型号 : SYS-531A-IL

数量 :

SYS-531A-IL 是 Supermicro SuperWorkstation 单处理器服务器等级工作站。适用于 3D 设计与内容创作的单路中塔式工作站。

本机型面向需要可靠运算、存储、扩展与专业图形配置的工作站部署。主要配置参考包含 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors、Mid-Tower、4 default 与 1x 668W。

Product SKUs
	SuperWorkstation SYS-531A-IL

Processor
CPU	Single LGA-1700 第14代/第13代/第12代 Intel® Core™ i9/i7/i5/i3 处理器
Core Count	Up to 24C/32T; Up to 36MB Cache

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 4400MT/s non-ECC DDR5 UDIMM
Memory Voltage	1.1V

Input / Output
USB	2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front) 3 USB 3.2 Gen1 Type-A ports(Rear)
Video	1 HDMI 2.0b port 1 DVI-D port 1 DisplayPort 1.4a port

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays4 internal fixed 3.5" SATA drive bays 查看傳輸选项
M.2	3 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280)

Motherboard
	超級 X13SAE

GPU
Max GPU Count	Up to 1 double-width GPU
Supported GPU	NVIDIA PCIe: RTX 2000 Ada, RTX 4000 Ada Generation, RTX 5000 Ada, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A5500, RTX A6000, T1000, T400 查看 GPU 选项

On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	1 RJ45 1GbE with Intel® I219-LM 1 RJ45 2.5GbE with Intel® I225-V

Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 3.0 x4 FHFL slots 2 PCIe 5.0 x8 (in x16) FHFL slots Option A2 PCIe 3.0 x4 FHFL slots 1 PCIe 5.0 x16 FHFL slot
