DS1100SDC Series冗餘式电源
The DS1100SDC-3 series bulk front end DC-DC power supply accepts a wide range -36 to –72 VDC input and provides a main 12 V output plus a 12 V standby output.
型号 :
ds1100sdc series

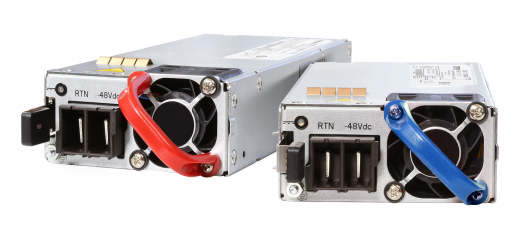

It is rated at 1,100 watts. Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS1100SDC-3 has a very high power density of 24 watts per cubic inch. This series comes in two airflow versions – dc-connector to ac-connector and vice versa. The series is also in the same form factor and has the same output configuration as the DS1100PED-3.
The main 12 V output can deliver up to 91.76 amps and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA). Active current sharing enables multiple supplies to be paralleled for very high current applications without need of additional components. The DS1100SDC-3 power supply is hot pluggable and ideal for fault tolerant, N+1 and N+N redundant applications.
This digitally-controlled power supply is PMBus™ compliant. A built-in I2C serial interface allows set-up, monitoring and control to be performed using Artesyn Embedded Technologies' universal PMBus graphical user interface.
-
Total Max Power:
1,100 W -
Total Max Current:
91.7 A -
Input Voltage:
-72 V to -36 V -
Output Voltage:
N/A -
Outputs:
-
Size (L x W x H):
7.740" x 3.400" x 1.580" -
Warranty:
2 years -
Operating Temperature:
0 to 50°C
- 1100 W output power
- High power and short form factor
- 1U power supply
- High-density design: 24 W/in3
- Inrush current control
- N+1 or N+N redundant
- Active current sharing
- Full digital control
- PMBus compliant
- Compatible with Artesyn’s
- Universal PMBus GUI
- Reverse airflow available
- Two-year warranty
