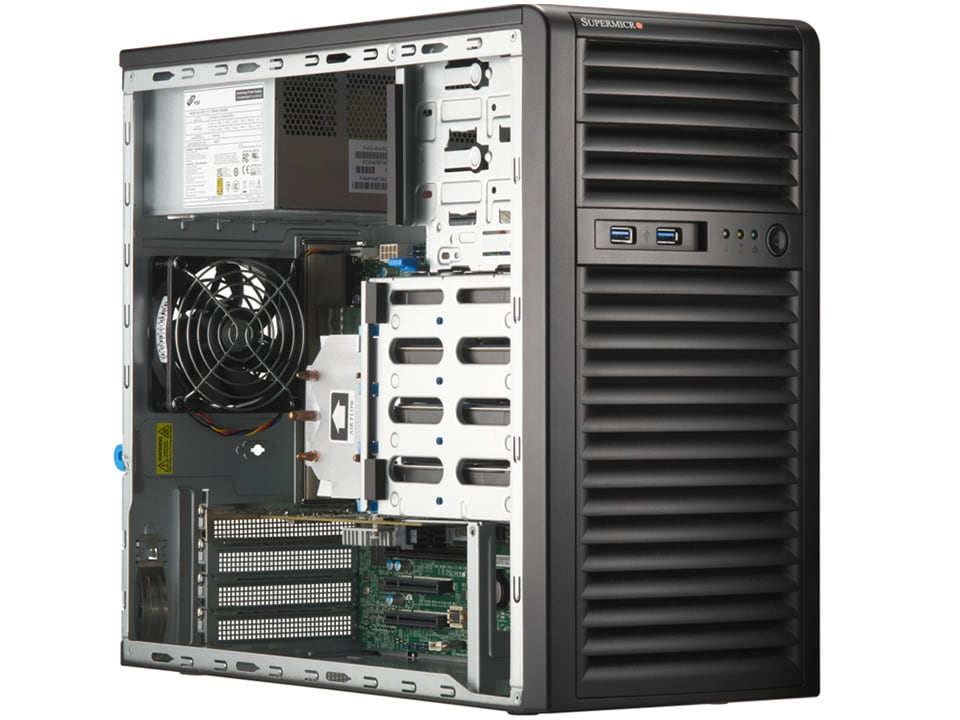

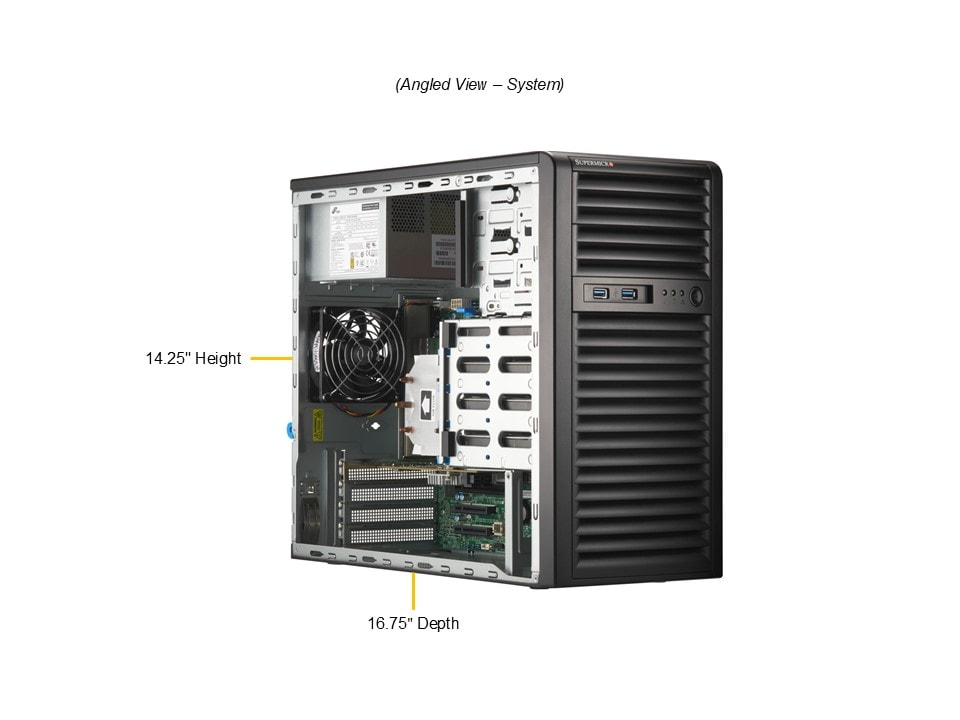

SYS-531R-I

具備 4 個內建 3.5 吋 SATA 硬盘位与 PCIe 5.0 的单路中塔式工作站。

型号 : SYS-531R-I

数量 :

SYS-531R-I 是 Supermicro SuperWorkstation 单处理器服务器等级工作站。具備 4 個內建 3.5 吋 SATA 硬盘位与 PCIe 5.0 的单路中塔式工作站。

本机型面向需要可靠运算、存储、扩展与专业图形配置的工作站部署。主要配置参考包含 Intel® Xeon ® 6300-series/E-2400 Series Processors、mini-tower、4 default 与 1x 400W。

Product SKUs
	SuperWorkstation SYS-531R-I

Processor
CPU	Single Socket V0 (LGA-1700) Intel® Xeon ® 6300-series/E-2400 Series Processors
Core Count	Up to 8C/16T

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
Memory Voltage	1.1V

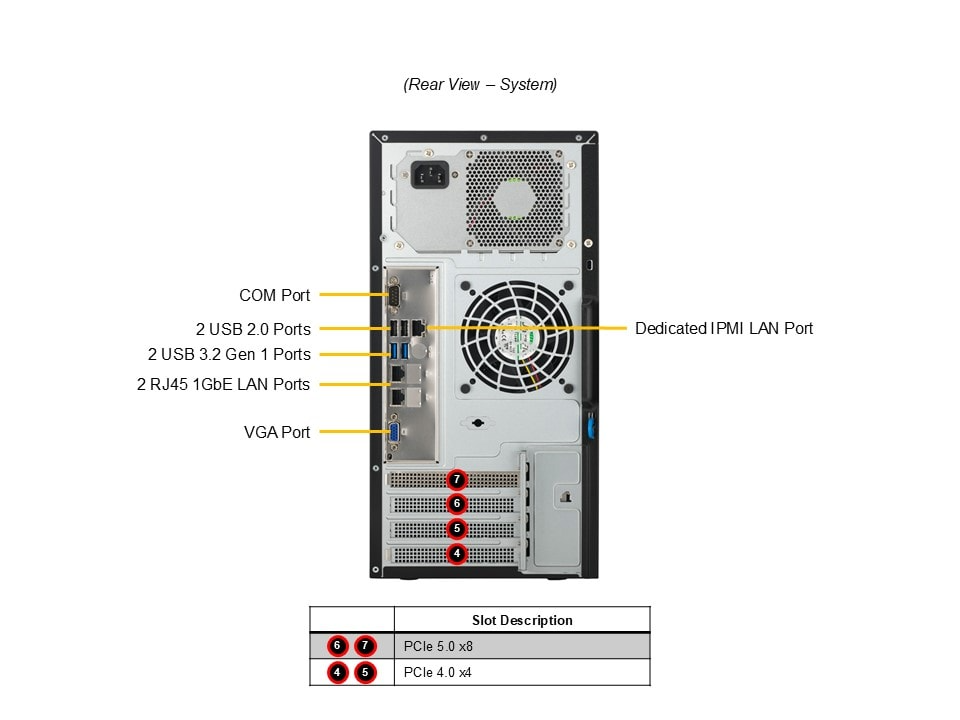

Input / Output

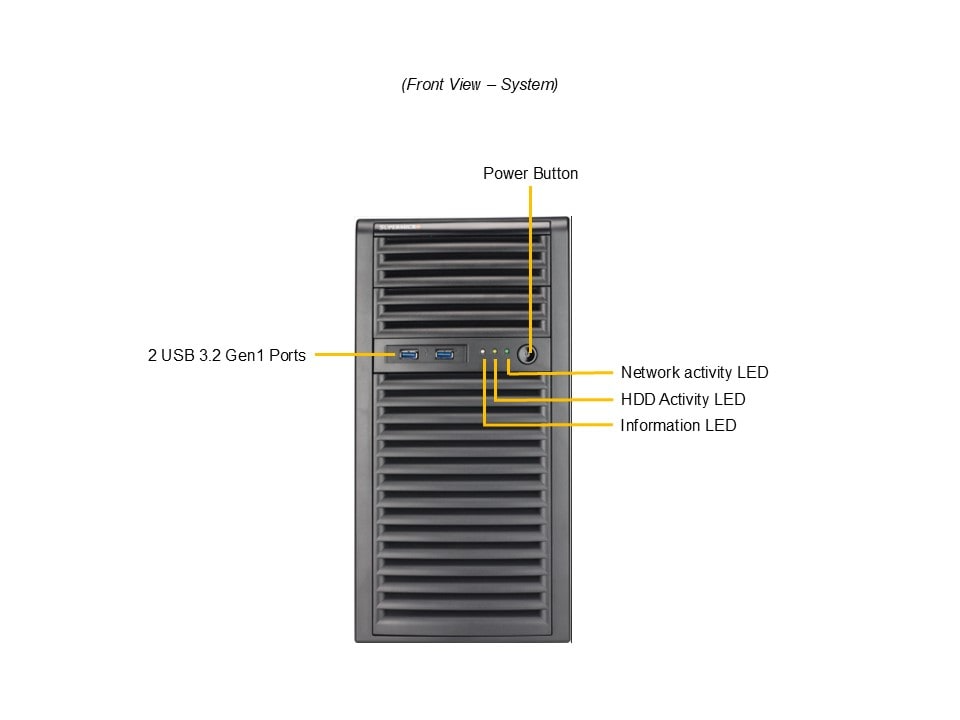

USB	2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front)
Video	1 VGA port

Drive Bays / Storage

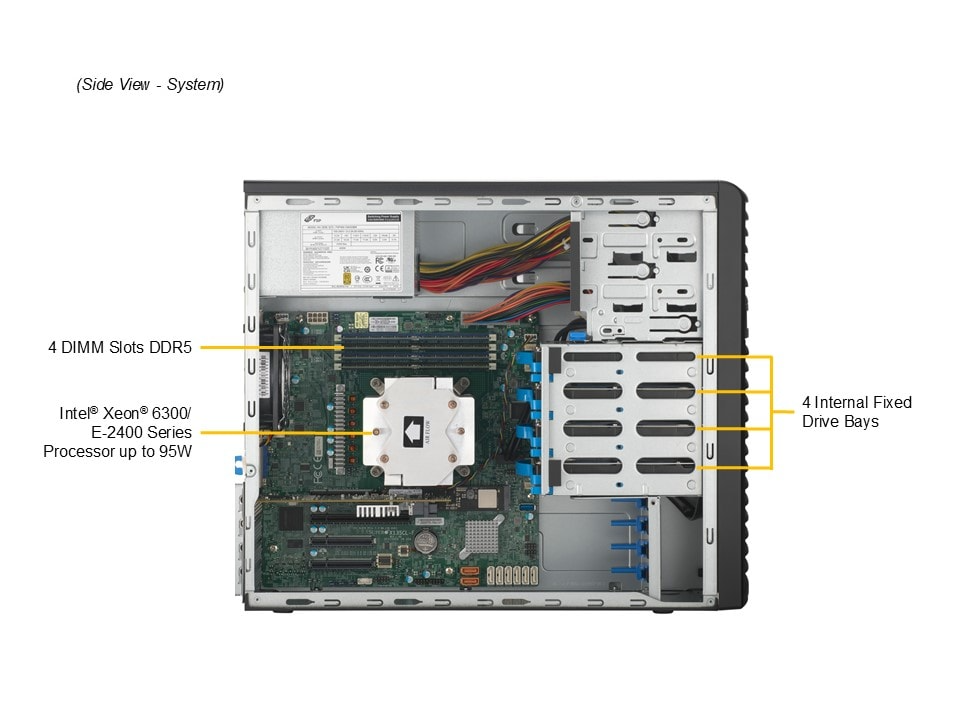

Drive Bays Configuration	Default: Total 4 bays4 internal fixed 3.5" SATA drive bays
M.2	1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)

Motherboard
	超級 X13SCL-F

GPU
Max GPU Count	Up to 1 double-width or 1 single-width GPU

On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel® I210

Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 FHFL slot 1 PCIe 4.0 x4 FHHL slot

System Cooling
Fans	Up to 1x 90mm Fan(s)

详细规格、选配项目与兼容性请以 Supermicro 原厂最新资料及亞郁实际报价规格为准。
