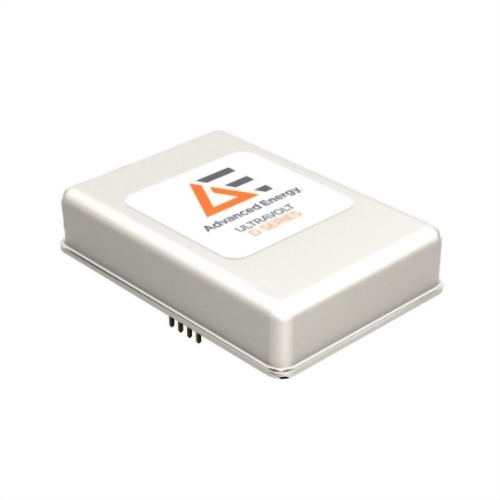

Designed for your low-profile applications, the Ultravolt D series features four models from 1000 to 6000 V in either single-output positive or negative polarities. The modules deliver up to 6 W of power from a 15 or 24 VDC input. Protection against reversed input polarity and module over-temperature is standard. Manage high voltage and current output with an analog interface.

• Achieve higher precision control compared to proportionally-controlled high voltage supplies
• Enhance application performance with responsive, high voltage output control
• Automatically shut down system if module case temperature is exceeded
• Increase power subsystem robustness and reliability
• Meet product packaging requirements
• Small-footprint, PCB-mountable package
• High voltage control and monitoring accuracy better than 0.2%
• Analog interface with integral voltage control and voltage/current monitors
• Over-temperature protection disables output if module case > 75°C
• Reversed polarity, short-circuit/arc, and overcurrent protection
