Product SKUs
|
|
SYS-111E-WR
|
|
Motherboard
|
|
Super X13SEW-F
|
|
Processor
|
|
CPU
|
|
|
Core Count
|
-
Up to 52C/104T; Up to 300MB Cache
|
|
Note
|
-
Supports up to 300W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
-
Up to 1 double-width or 2 single-width GPUs
|
|
Supported GPU
|
|
|
CPU-GPU Interconnect
|
-
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
System Memory
|
|
Memory
|
-
Slot Count: 8 DIMM slots/8 Channels
-
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
SATA
|
-
SATA (6Gbps) ; RAID 0/1/5/10 support
|
|
NVMe
|
-
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
-
View NVMe Options
|
|
Network Connectivity
|
-
2 RJ45 1GbE with Intel® I210
-
View AOC Options
|
|

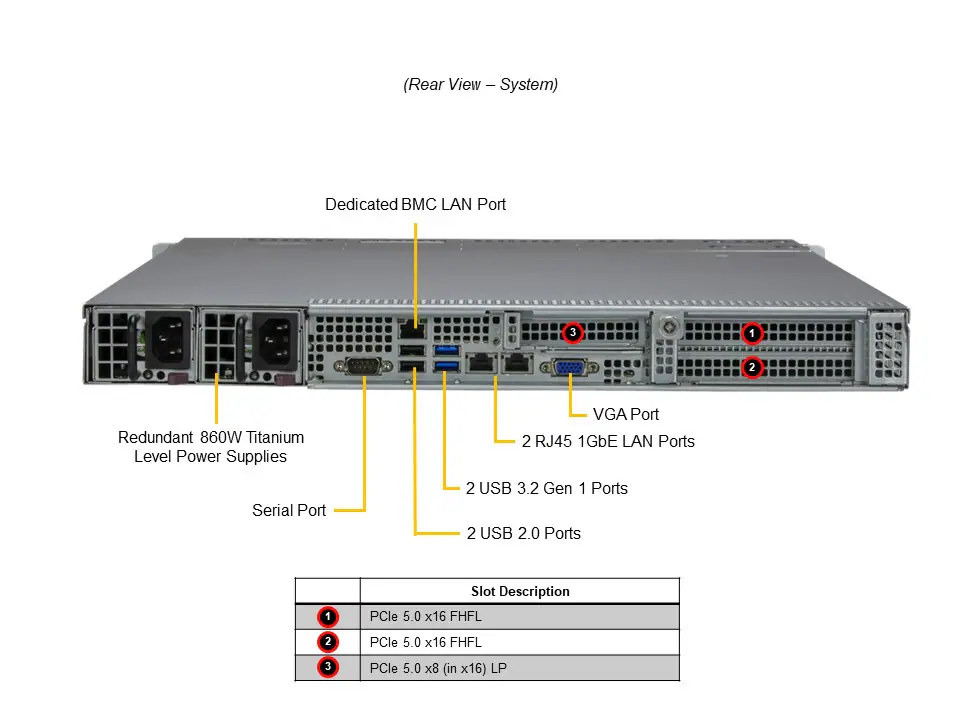

Input / Output
|
|
LAN
|
-
2 RJ45 1 GbE LAN ports
-
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
|
|
USB
|
-
2 USB 3.2 Gen1 Type-A ports(rear)
-
2 USB 2.0 Type-A ports(rear)
-
2 USB 3.2 Gen1 Type-A ports(front)
-
1 USB 2.0 Type-A port(Header)
|
|
Video
|
|
|
Serial
|
-
1 COM port(Rear)
-
1 COM port(Header)
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI/APM Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
8 Phase-switching voltage regulator
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
Certifications
|
|
Operating Systems
|
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
7.75" (H) x 23.5" (W) x 31.5" (D)
|
|
Weight
|
-
Gross Weight: 33.5 lbs (15.2 kg)
-
Net Weight: 21 lbs (9.53 kg)
|
|
Available Color
|
|
|

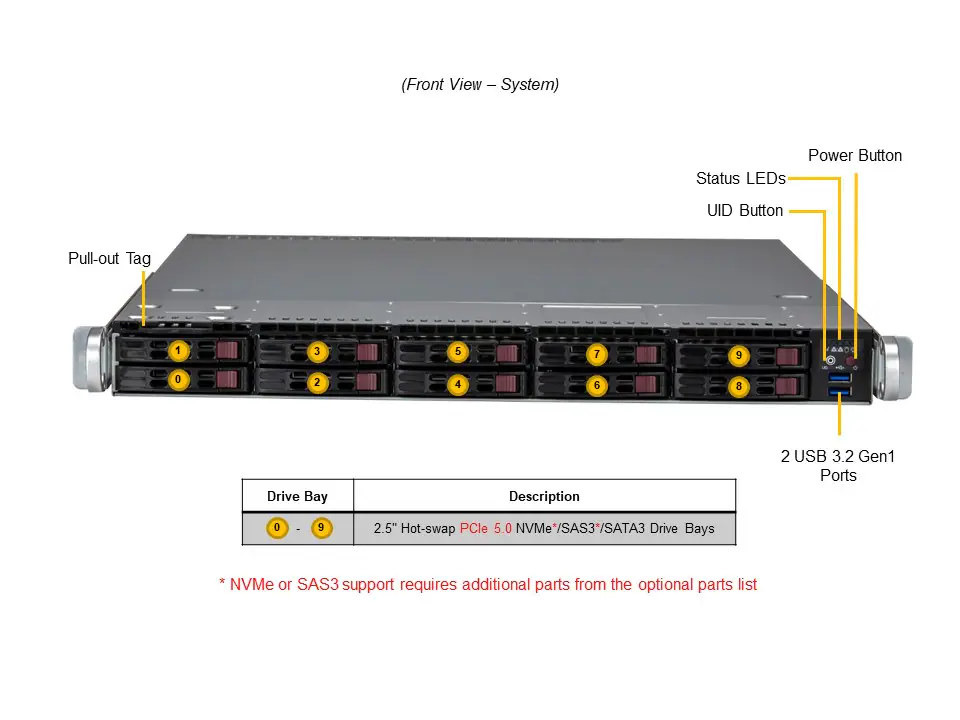

Front Panel
|
|
Buttons
|
-
Power On/Off button
-
Unit Identification (UID) button
|
|
LED
|
-
Fan Fail/System Over Heat LED
-
HDD activity LED
-
Network Activity LEDs
-
Power status LED
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
2 PCIe 5.0 x16 FHFL slots
-
1 PCIe 5.0 x8 (in x16) LP slot
-
View AOC Options
|
|

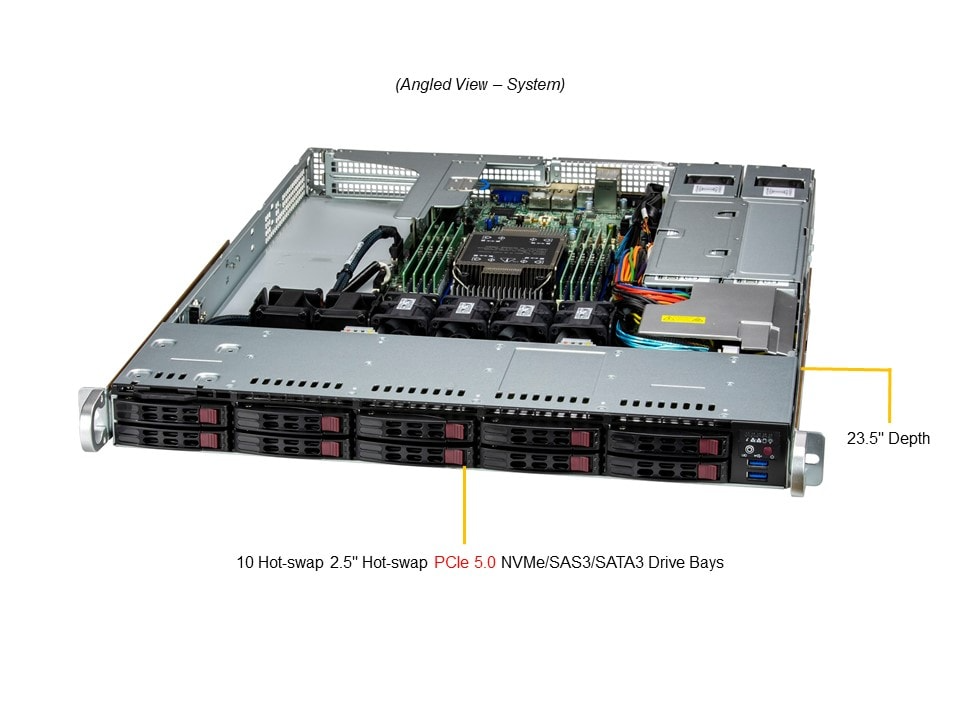

Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 10 bays
-
10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
-
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
|
|
System Cooling
|
|
Fans
|
-
Up to 5 middle cooling PWM 40x40x56mm Fan(s)
-
Up to 1 AOC cooling Fan(s) (optional)
|
|
Air Shroud
|
|
|
Power Supply
|
|
|
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
54.5 x 40.25 x 322 mm
|
|
Input
|
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
|
|
+12V
|
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
-
Operating Relative Humidity: 8% to 80% (non-condensing)
-
Non-operating Relative Humidity: 8% to 90% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

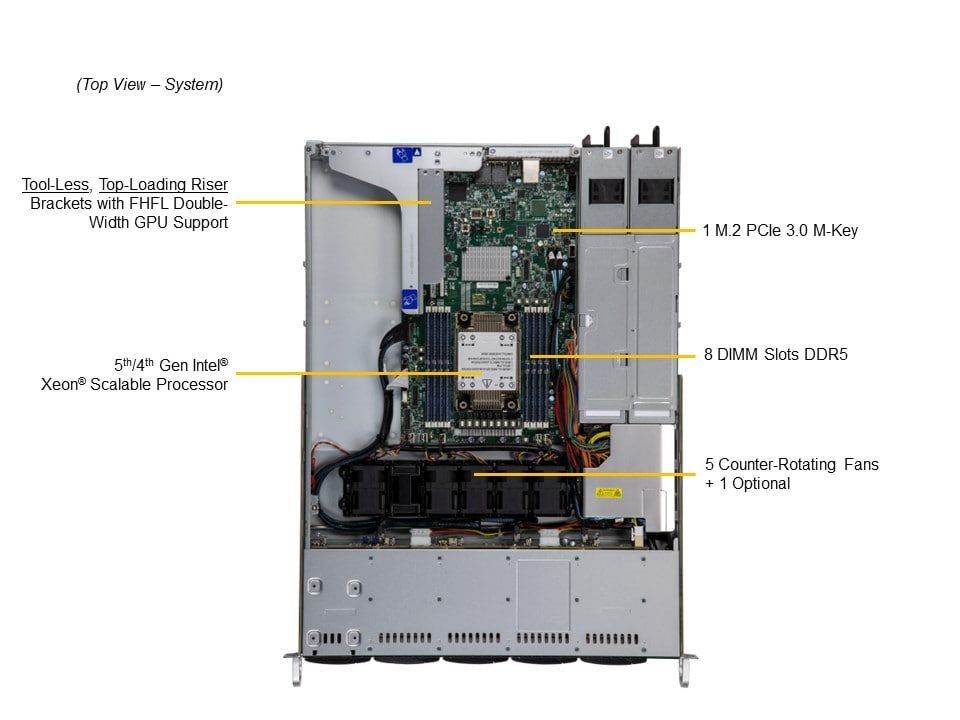

Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
-
Intel® C741 Chipset
-
8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
-
Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
-
10x front hot-swap 2.5" SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
-
Redundant Now Titanium 860W Power Supplies
-
Virtualization
-
Data Center Optimized
-
Entry GPU server
-
Cloud Computing
-
Database/Storage
