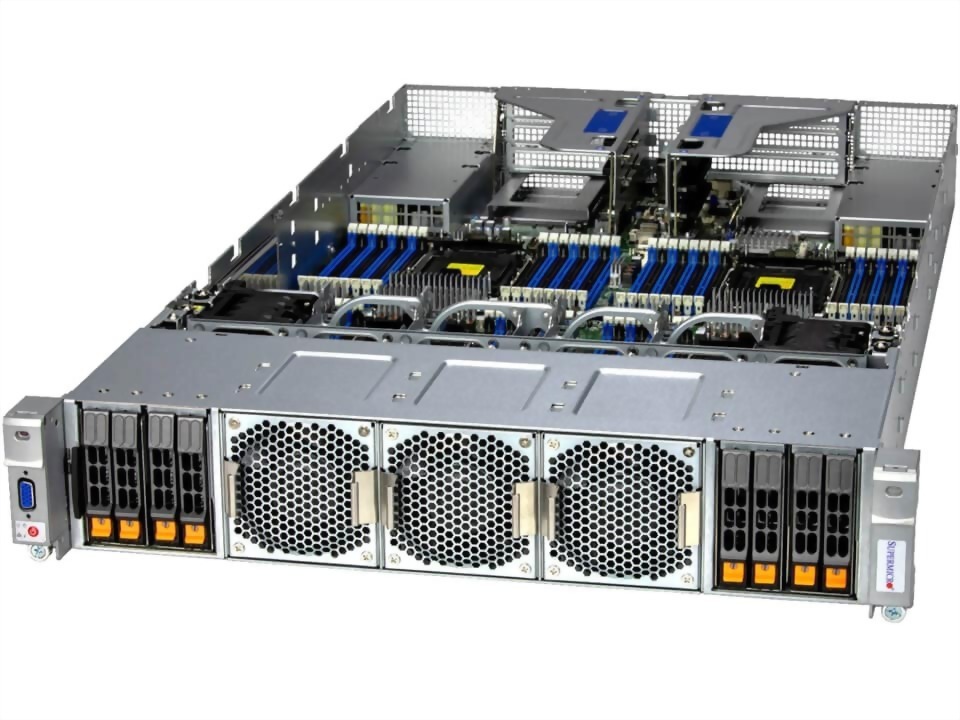

SYS-241H-TNRTTP

2U 4-socket system with 64 DIMMs and 8 NVMe/SAS/SATA drive bays

型号 : SYS-241H-TNRTTP

数量 :

Product SKUs
SuperServer SYS-241H-TNRTTP

Motherboard
Super X13QEH+

Processor
CPU	Quad Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 60C/120T; Up to 112.5MB Cache per CPU
Note	Supports 165W - 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width GPUs
Supported GPU	NVIDIA PCIe: H100, L40, RTX A6000, RTX A4000, L40S, A100 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 64 DIMM slots Max Memory (2DPC): Up to 8TB ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

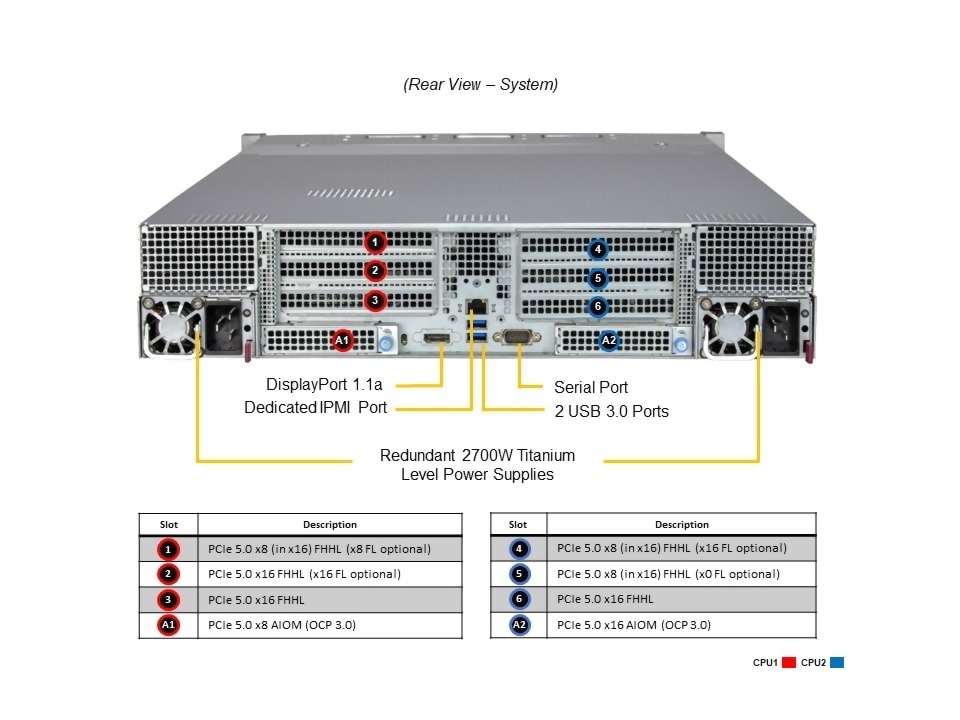

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 2.0 ports(front)
Video	1 VGA port 1 DisplayPort port
Serial	1 COM port(Rear)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	3.5" (87.9 mm)
Width	17.3" (848.36 mm)
Depth	33.4" (812.9 mm)
Package	9.75" (H) x 26.5" (W) x 43.5" (D)
Weight	Gross Weight: 71.5 lbs (32.43 kg) Net Weight: 45.5 lbs (20.64 kg)
Available Color	Black

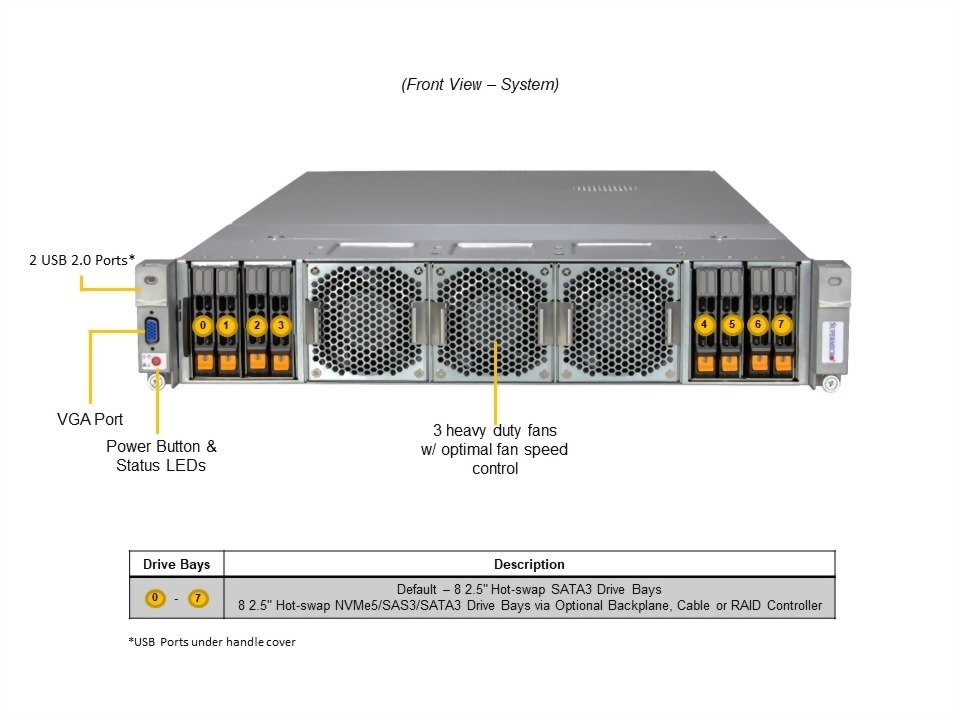

Front Panel
LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off UID

Expansion Slots

PCI-Express (PCIe) Configuration

Default
- 3 PCIe 5.0 x8 (in x16) FHHL slots
- 3 PCIe 5.0 x16 FHHL slots
- 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
- 2 PCIe 5.0 x16 FHFL double-width slots
- 2 PCIe 5.0 x16 FHHL slots
- 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*
- 3 PCIe 5.0 x8 (in x16) FHHL slots
- 3 PCIe 5.0 x16 FHHL slots
- 2 PCIe 4.0 x8 (in x16) LP slots
- 2 PCIe 4.0 x16 LP slots
- 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

...

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
M.2	2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110) View M.2 Options

System Cooling
Fans	Up to 3 Heavy duty counter-rotating 8cm Fan(s) Up to 2 Internal Heavy duty counter-rotating 6cm Fan(s)
Air Shroud	4 Air Shrouds

Power Supply

2x 2700W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

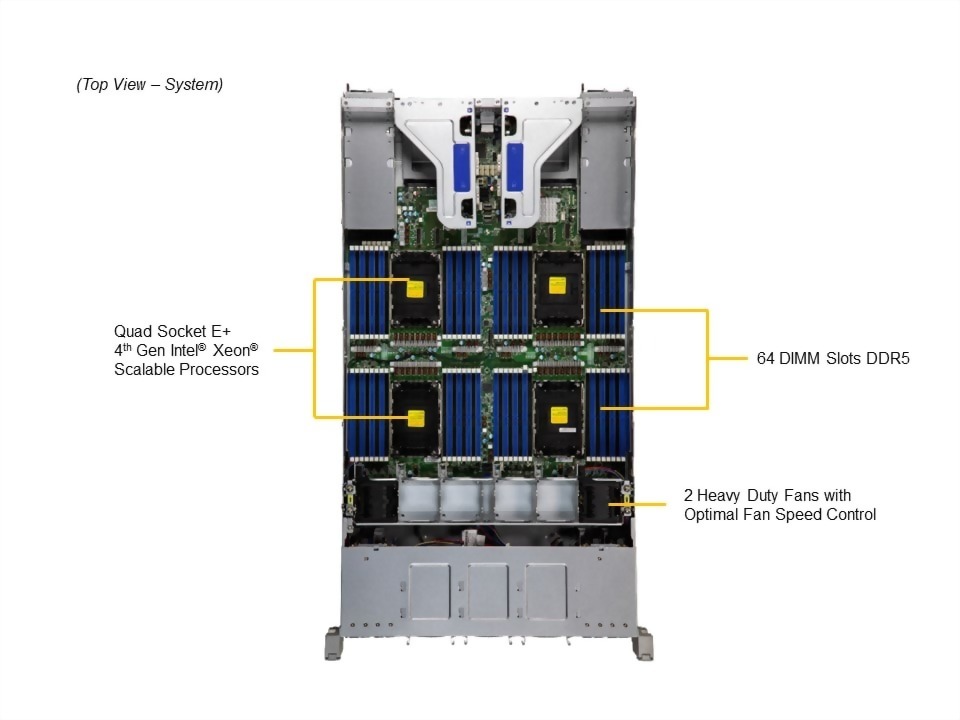

Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
64 DIMM Slots; Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
Optional PCIe configurations up to 12 PCIe slots with support for two double-width GPU/Accerlator cards
Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

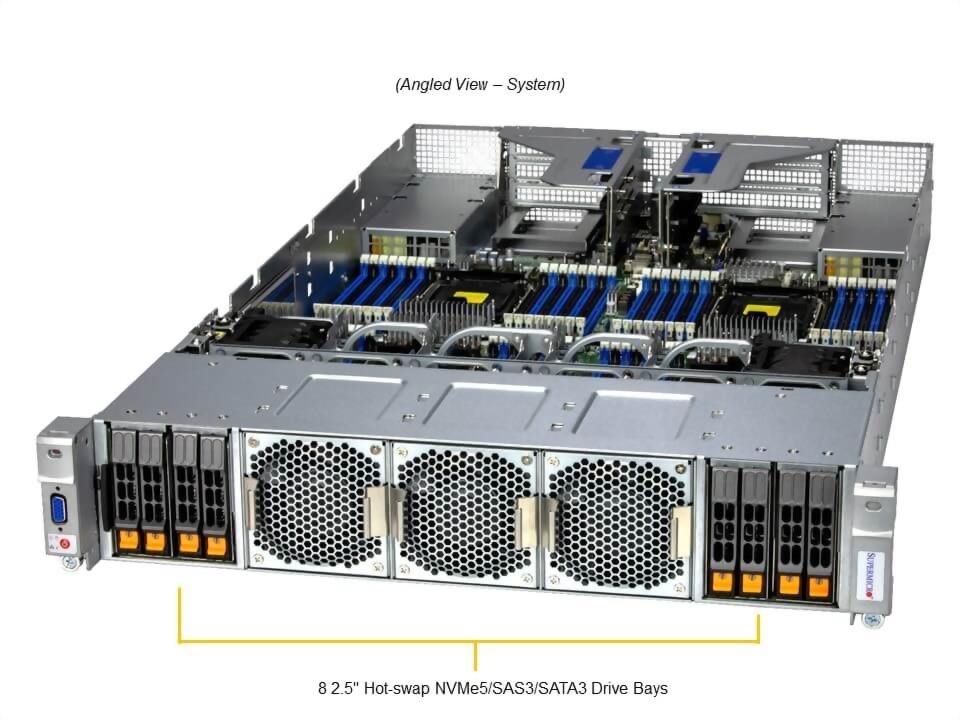

8x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
5 heavy duty fans w/ optimal fan speed control
