• MBD-X10SRM-F (Embedded)

MBD-X10SRM-F (Embedded)

- Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family
- Intel® C612 chipset
- Up to 512GB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 4 DIMM slots
- 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
- Intel® i350 Dual GbE LAN ports
- 10 SATA3 (6Gbps) via C612
- 1 VGA, 2 COM, 1 TPM
- 5 USB 3.0 ports, 6 USB 2.0 ports
- 2 SuperDOM with built-in power
型号 : X10SRM-F

1. Single socket R3 (LGA 2011) supports

2. Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family

3. Intel® C612 chipset

4. Up to 512GB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 4 DIMM slots

5. 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8

6. Intel® i350 Dual GbE LAN ports

7. 10 SATA3 (6Gbps) via C612

8. 1 VGA, 2 COM, 1 TPM

9. 5 USB 3.0 ports, 6 USB 2.0 ports

10. 2 SuperDOM with built-in power


Product SKUs
MBD-X10SRM-F
  • X10SRM-F

Physical Stats
Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
  • Intel® Xeon® Processor E5-1600 V3
  • Intel® Xeon® Processor E5-1600 V4
  • Intel® Xeon® processor E5-2600 V3
  • Intel® Xeon® processor E5-2600 V4
  • Single Socket R3 (LGA 2011) supported; CPU TDP support Up to 145W
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
  • Up to 128GB Registered ECC RDIMM and DDR4-2400MHz, Up to 256GB Registered ECC LRDIMM, in 4 DIMM slots
  • Up to 512GB ECC 3DS LRDIMM
  • 4x 288-pin DDR4 DIMM slots
Memory Type
  • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® i350 Gigabit Ethernet Controller
    Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 10 SATA2 (3Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 ports (2 rear, 4 via header(s))
  • 5 USB 3.0 ports (2 rear, 2 via header(s), 1 Type A)
Video Output
  • 1 VGA port(s)
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header(s))
    2 fast UART 16550 serial
TPM
  • TPM Header

Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16
  • 2 PCI-E 3.0 x8
M.2
  • Form Factor: 2242, 2280, 22110

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
  • Intel® Node Manager
  • IPMI2.0
  • KVM with dedicated LAN
  • NMI
  • SPM
  • SUM
  • SuperDoctor® 5
  • Watchdog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, HT, VBAT
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6 fans with tachometer status monitoring
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitoring for on/off control
  • Status monitoring for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free

Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)


Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SRM-F 1 X10SRM-F Motherboard
I/O Cable 1 CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket

相关产品

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

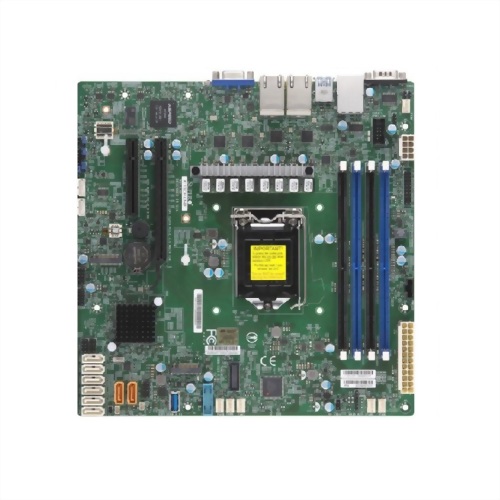

MBD-X11SCH-LN4F

MBD-X11SCH-LN4F

MBD-X11SSH-LN4F

MBD-X11SSH-LN4F

MBD-X11SAE-M (Workstation)

MBD-X11SAE-M (Workstation)

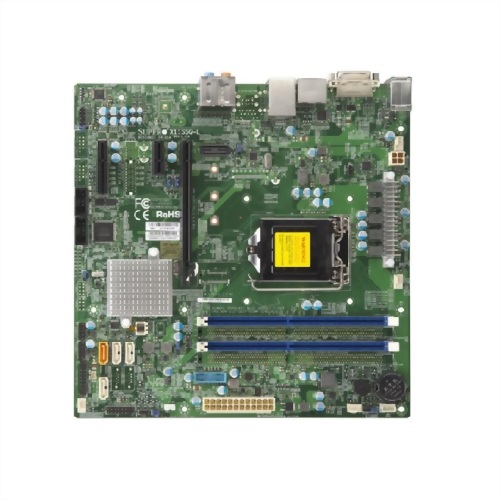

MBD-X11SSQ-L (Embedded Desktop)
