• MBD-X11SCQ-L 工业级主机板

MBD-X11SCQ-L 工业级主机板

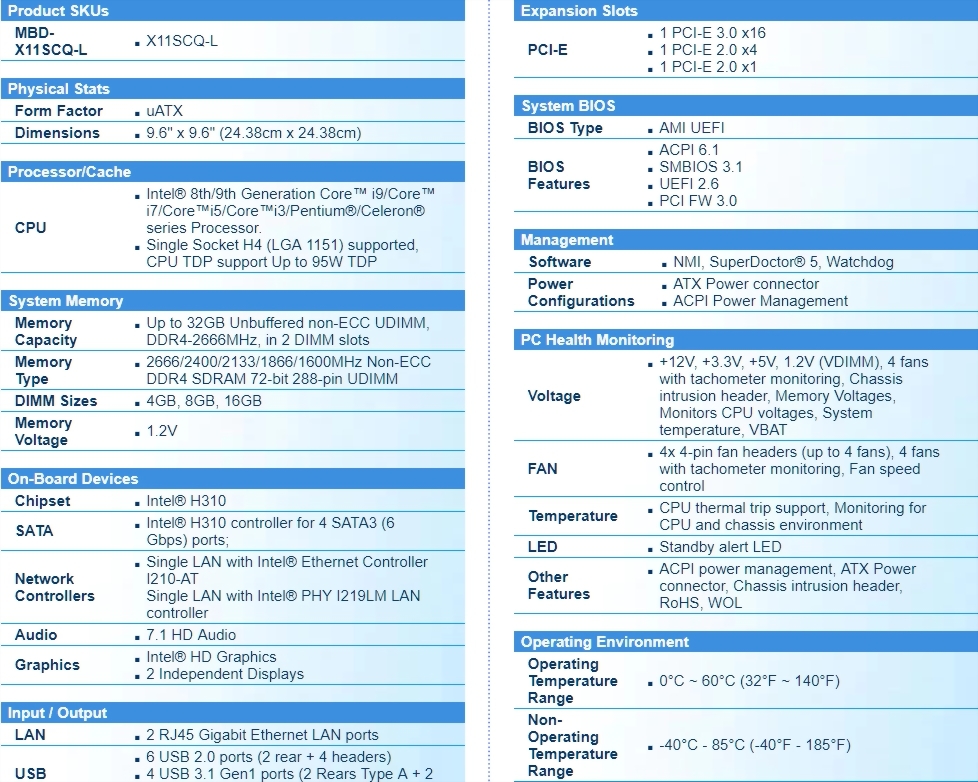

Intel® 8th/9th Generation Core™ i9/Core™i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP,Intel® H310,Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots:1 PCI-E 3.0 x16、1 PCI-E 2.0 x4、1 PCI-E 2.0 x1
型号 : X11SCQ-L

  • Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
  • Intel® H310
  • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
  • 1 PCI-E 3.0 x16
    1 PCI-E 2.0 x4
    1 PCI-E 2.0 x1

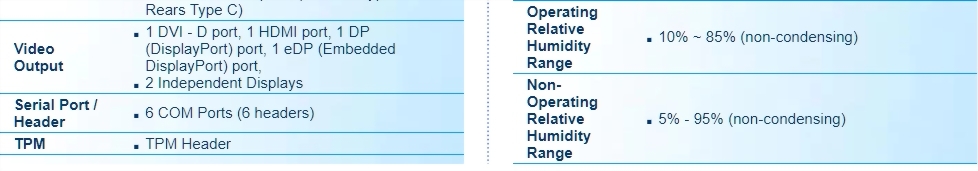

  • 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
    2 Independent Displays
  • Intel® H310 controller for 4 SATA3 (6 Gbps) ports;
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller

PARTS LIST

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCQ-L 1 X11SCQ-L Motherboard
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00125-0N 1 Standard I/O Shield for X11SCQ/-L with EMI Gasket

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCQ-L 1 X11SCQ-L Motherboard
QRG MNL-2110-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00125-0N 1 Standard I/O Shield for X11SCQ/-L with EMI Gasket
