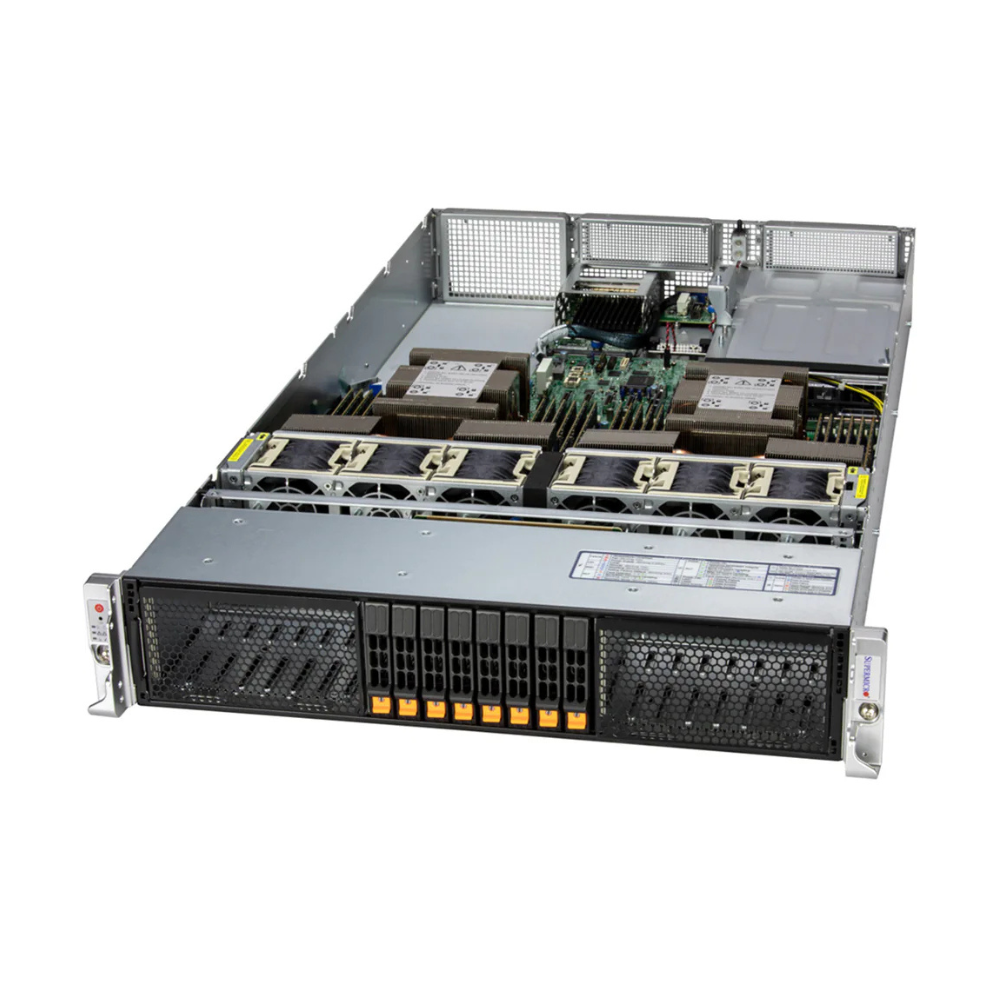

SYS-222HA-TN

2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

型号 : SYS-222HA-TN

数量 :

Product SKUs
SYS-222HA-TN

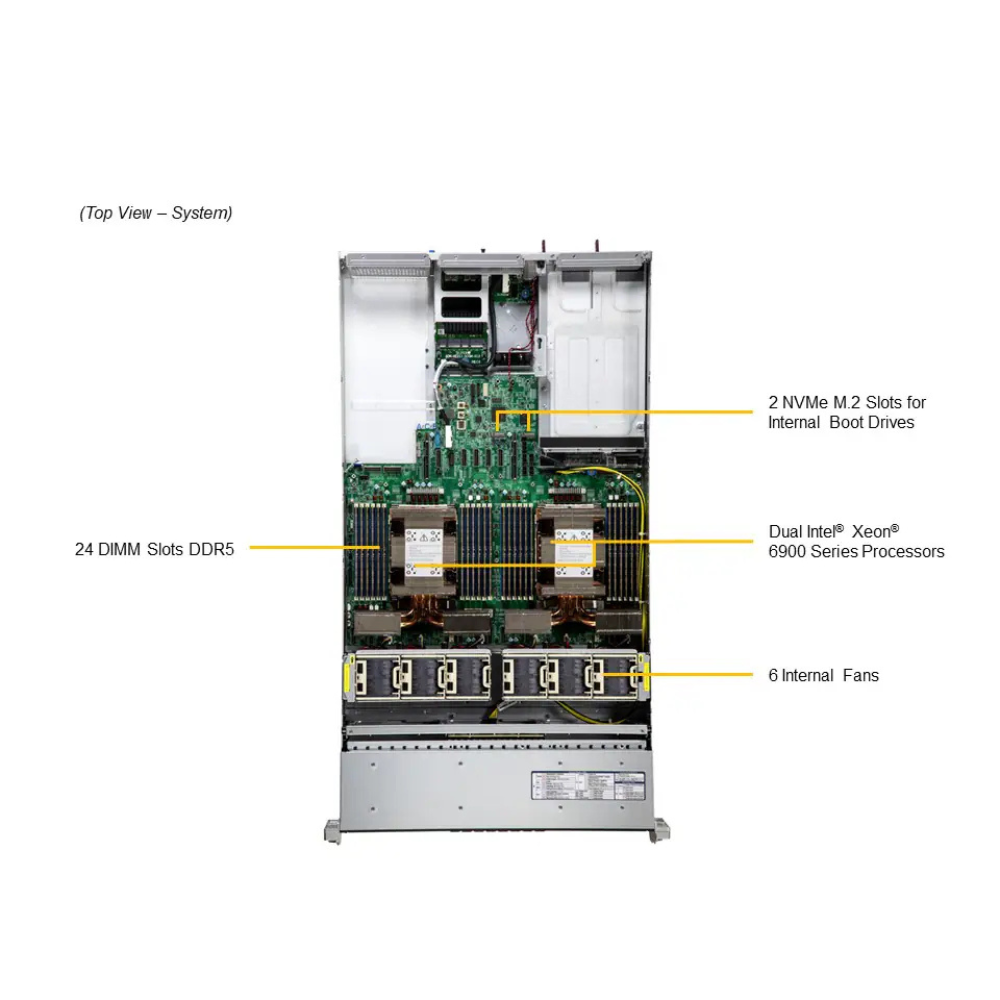

Motherboard
Super X14DBM-AP
Processor
CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 Series processors with P-cores and Intel Xeon 6+ processors
Core Count	P-cores: Up to 128C/256T; Up to 504MB Cache per CPU E-cores: Up to 288C/288T; Up to 576MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Air Cooled) Supports up to 500W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	Up to 4 double-width or 8 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, A16, L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 5000 Ada View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (P-core) Max Memory (1DPC): Up to 3TB 8000MT/s ECC DDR5 RDIMM (E-core) View Memory Options
Memory Voltage	1.1V
On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Network Connectivity	Via AIOM View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-HS201-R000NFP
Dimensions and Weight
Height	3.5" (88.9 mm)
Width	17.2" (437 mm)
Depth	31.74" (806.2 mm)
Package	9.96" (H) x 26.46" (W) x 43.31" (D)
Weight	Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity Power status System information
Expansion Slots

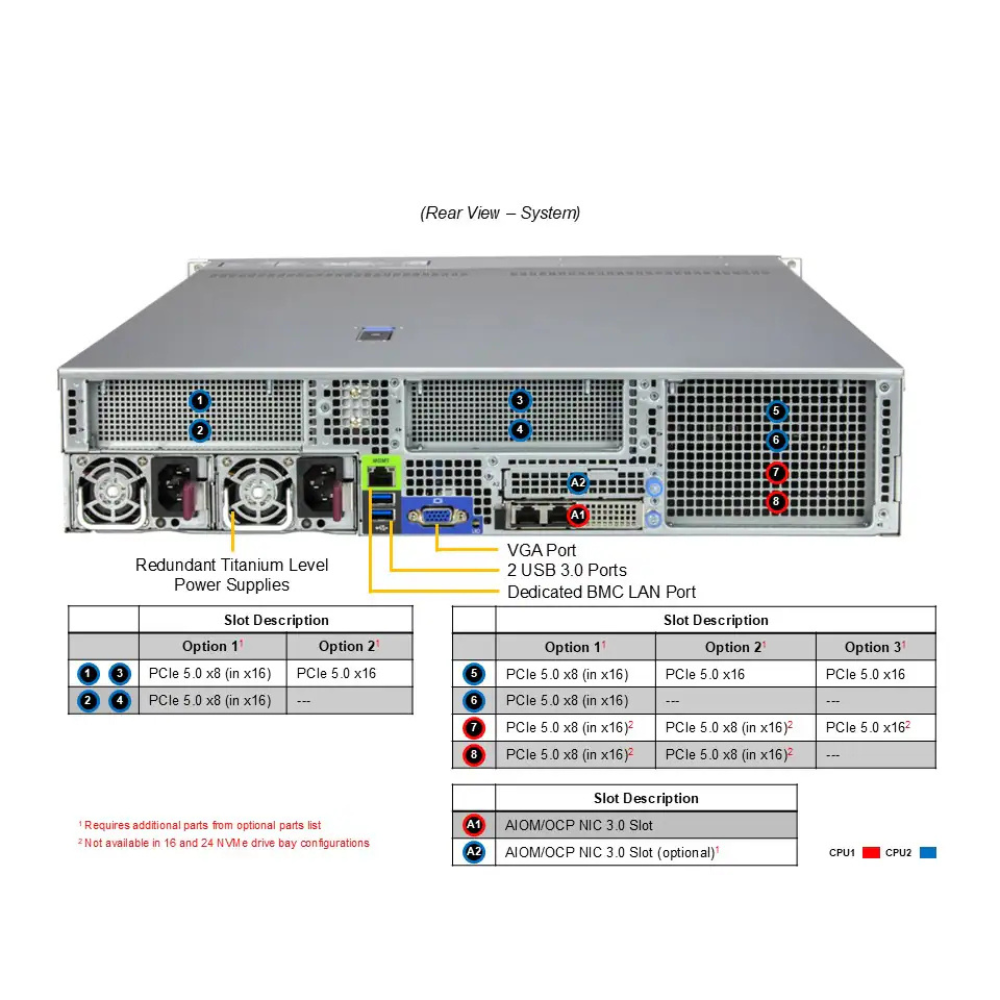

PCI-Express (PCIe) Configuration	Option A* 4 PCIe 5.0 x16 FH/10.5"L double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) View AOC Options
CXL Support	Up to 4 CXL 2.0 x16/x8 devices

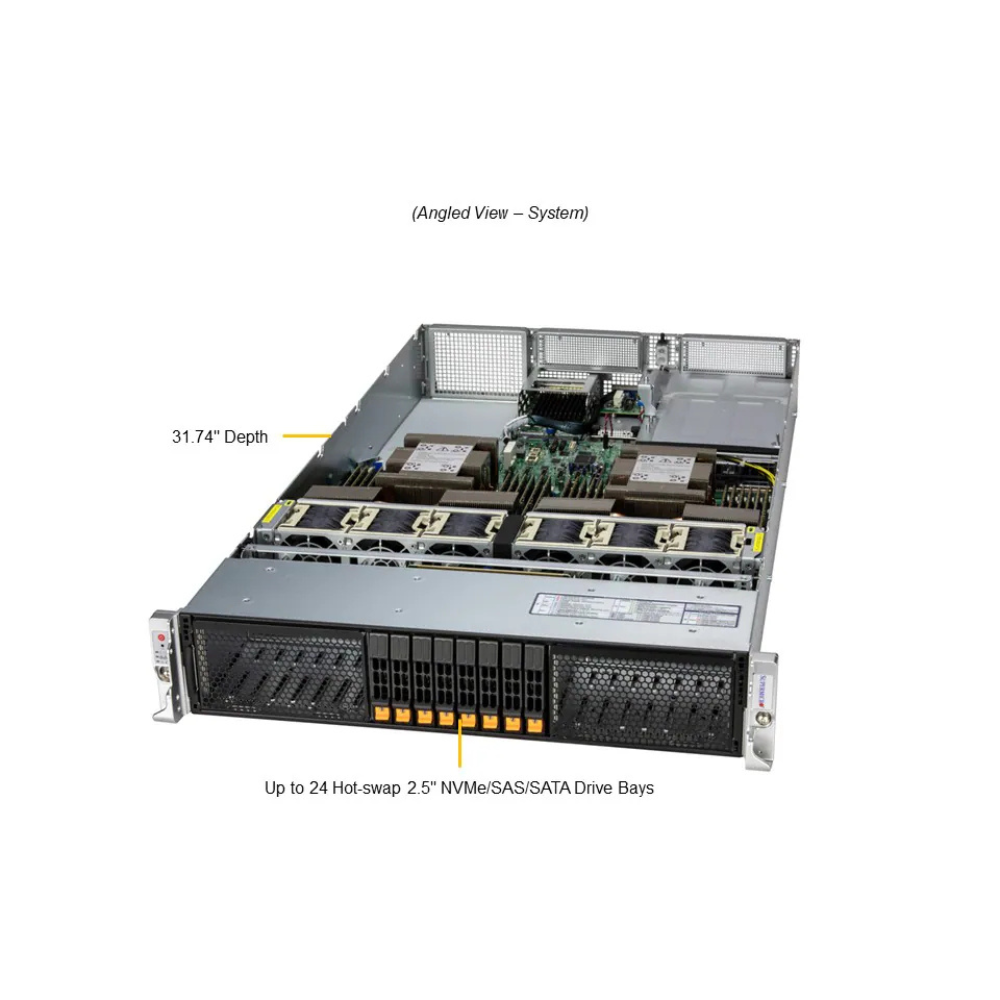

Drive Bays / Storage

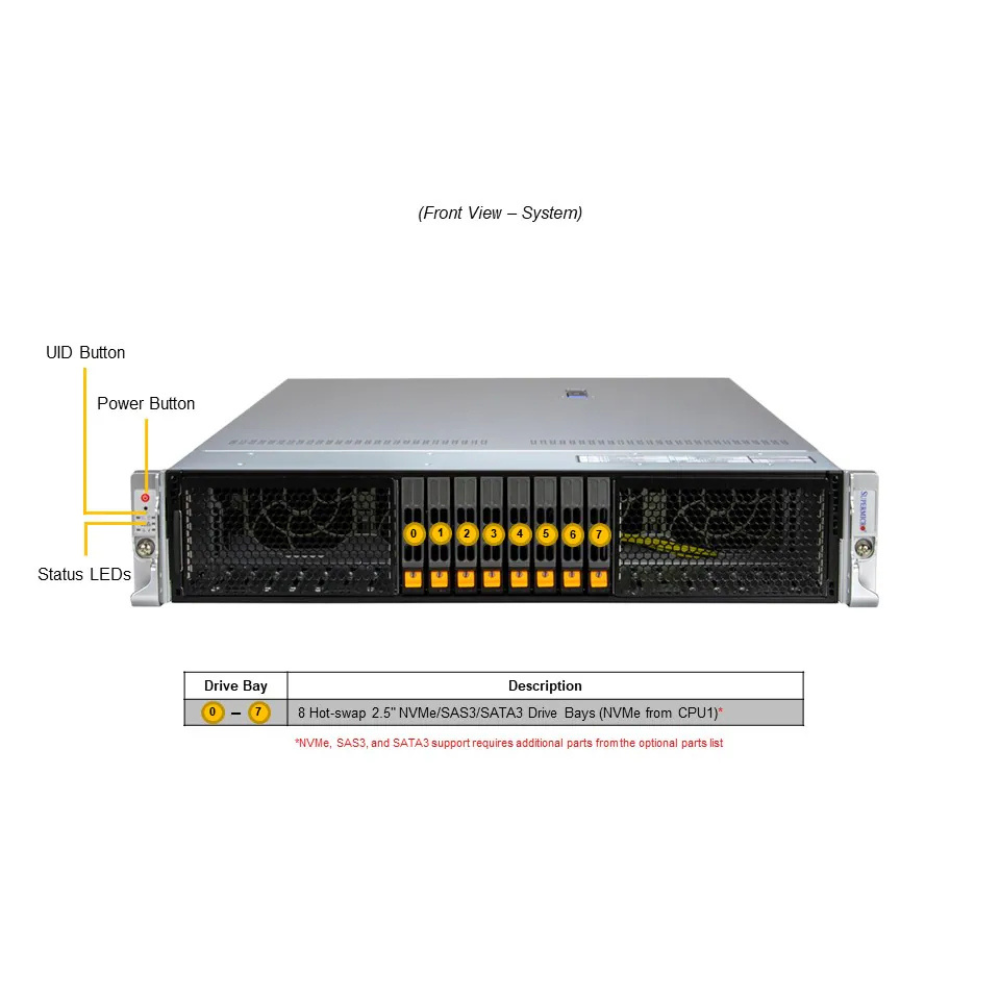

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 6 counter-rotating 60x60x56mm Fan(s)
Air Shroud	2 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
	2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
	2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
	2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only) 2700W: 200-240Vac
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) Max: 225A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
