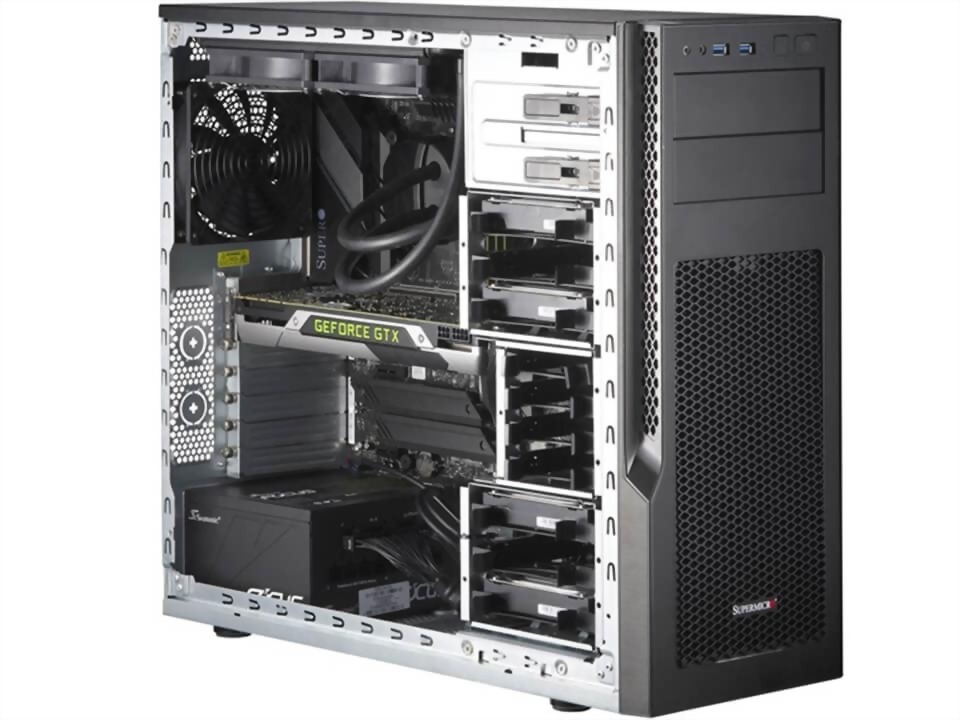

SYS-531AD-I

适用于游戏与内容创作的单路中塔式工作站。

型号 : SYS-531AD-I

数量 :

SYS-531AD-I 是 Supermicro SuperWorkstation 单处理器服务器等级工作站。适用于游戏与内容创作的单路中塔式工作站。

本机型面向需要可靠运算、存储、扩展与专业图形配置的工作站部署。主要配置参考包含 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors、Mid-Tower、6 default 与 1x 750W。

Product SKUs
	SuperWorkstation SYS-531AD-I

Processor
CPU	Single Socket V0 (LGA-1700) 第14代/第13代/第12代 Intel® Core™ i9/i7/i5/i3 处理器、Pentium® 处理器及 Celeron® 处理器
Core Count	Up to 24C/48T; Up to 16MB Cache

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 4400MT/s non-ECC DDR5 UDIMM
Memory Voltage	1.1V

Input / Output
USB	4 USB 2.0 ports(rear) 2 USB 2.0 ports(header) 2 ports(front) 2 ports(rear)

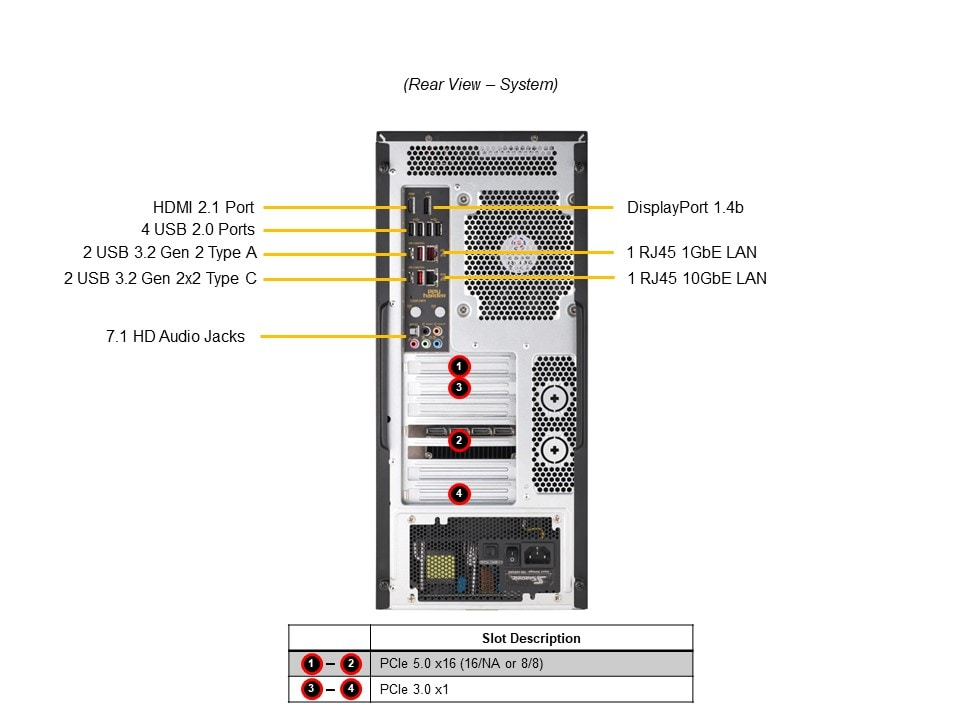

Video	1 HDMI 2.1 port 1 DisplayPort 1.4b port

Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bays6 internal fixed 3.5" SATA drive bays 查看傳輸选项
M.2	2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)

Motherboard
	超級 C9Z790-CG

GPU
Max GPU Count	Up to 1 double-width GPU

On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	1 RJ45 1GbE with Intel® PHY I219-V 1 RJ45 10GbE with Marvell® AQC113

Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x8 FHFL slots 2 PCIe 3.0 x1 FHFL slots Option A1 PCIe 5.0 x16 FHFL slot 2 PCIe 3.0 x1 FHFL slots
