高效可扩展型 (DS系列)
DS系列是一款高性能无风扇嵌入式计算机，支持多样化的Intel® Core™桌上型处理器，容纳两个记忆体插槽（最高支持32GB），可满足各种高端计算需求。
DS系列最多可支持 2个PCI / PCIe扩展槽，可以针对您的应用提供灵活的扩展能力。
| Product | Model Name | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|
|
NEW
|

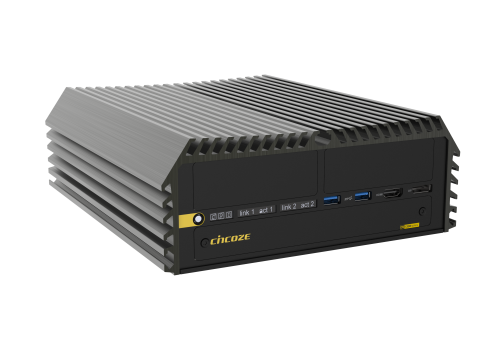

DS-1300 | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E |
2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA |
3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface |
|
NEW
|

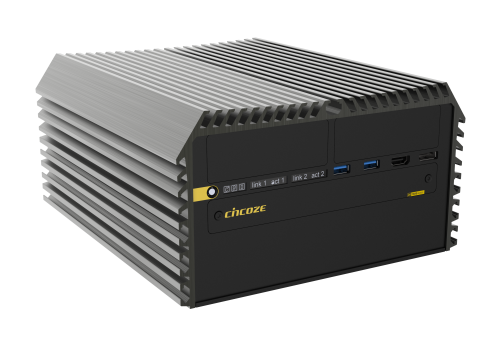

DS-1301 | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E |
2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA |
3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface 1 x PCI/PCIe slot |
|
NEW
|

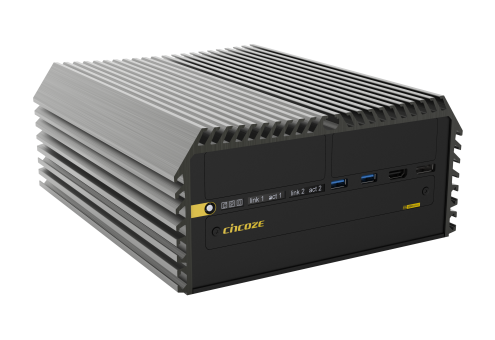

DS-1302 | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E |
2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA |
3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface 2 x PCI/PCIe slot |
|

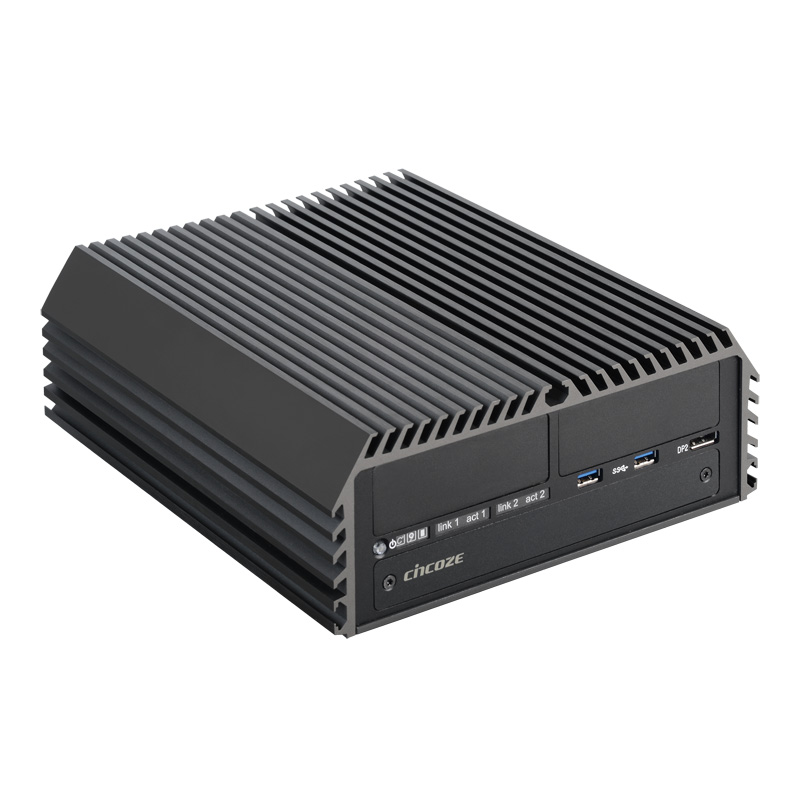

DS-1200 | 9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron | Intel® Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort | 1x CFM Interface, 4x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|

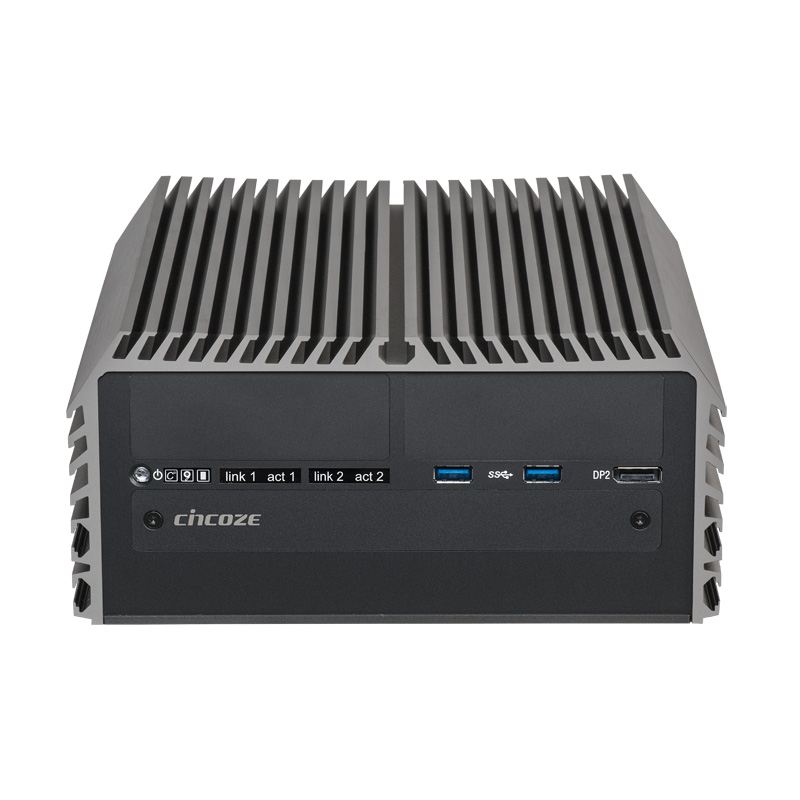

DS-1201 | 9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron | Intel® Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort | 1x CFM Interface, 4x CMI Interfaces, 1x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|

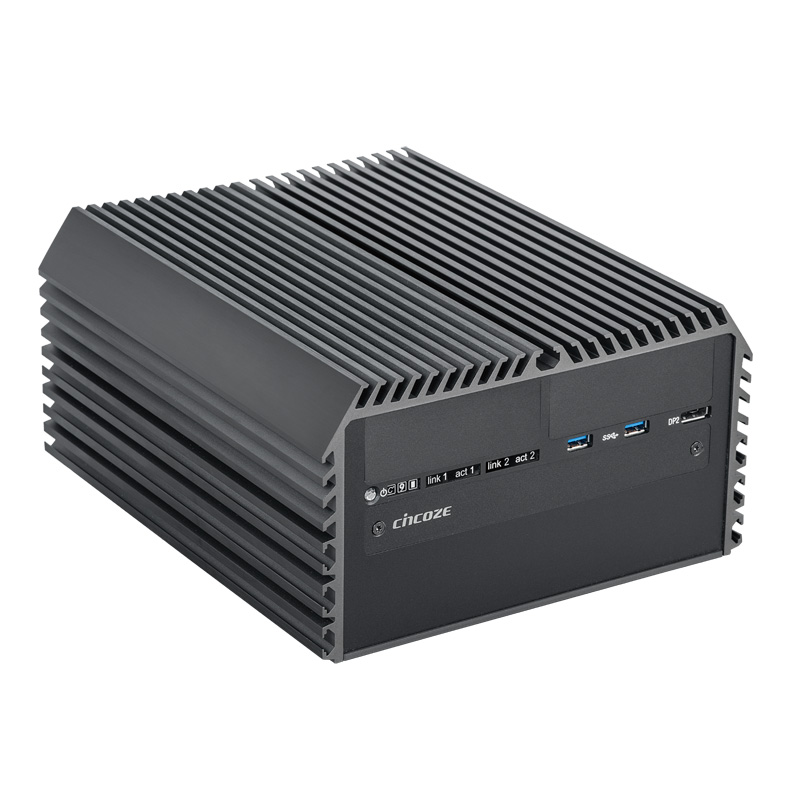

DS-1202 | 9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron | Intel® Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort | 1x CFM Interface, 4x CMI Interfaces, 2x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 5x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|
DS-1100 | 7/6th Gen. Intel® Core i3 / i5 / i7 | Intel® Q170 | 2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort | 1x CFM Interface, 2x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
|
DS-1101 | 7/6th Gen. Intel® Core i3 / i5 / i7 | Intel® Q170 | 2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort | 1x CFM Interface, 2x CMI Interfaces, 1xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
|
DS-1102 | 7/6th Gen. Intel® Core i3 / i5 / i7 | Intel® Q170 | 2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort |
1x CFM Interface, 2x CMI Interfaces, 2xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 3x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
