AS-2115HV-TNRT

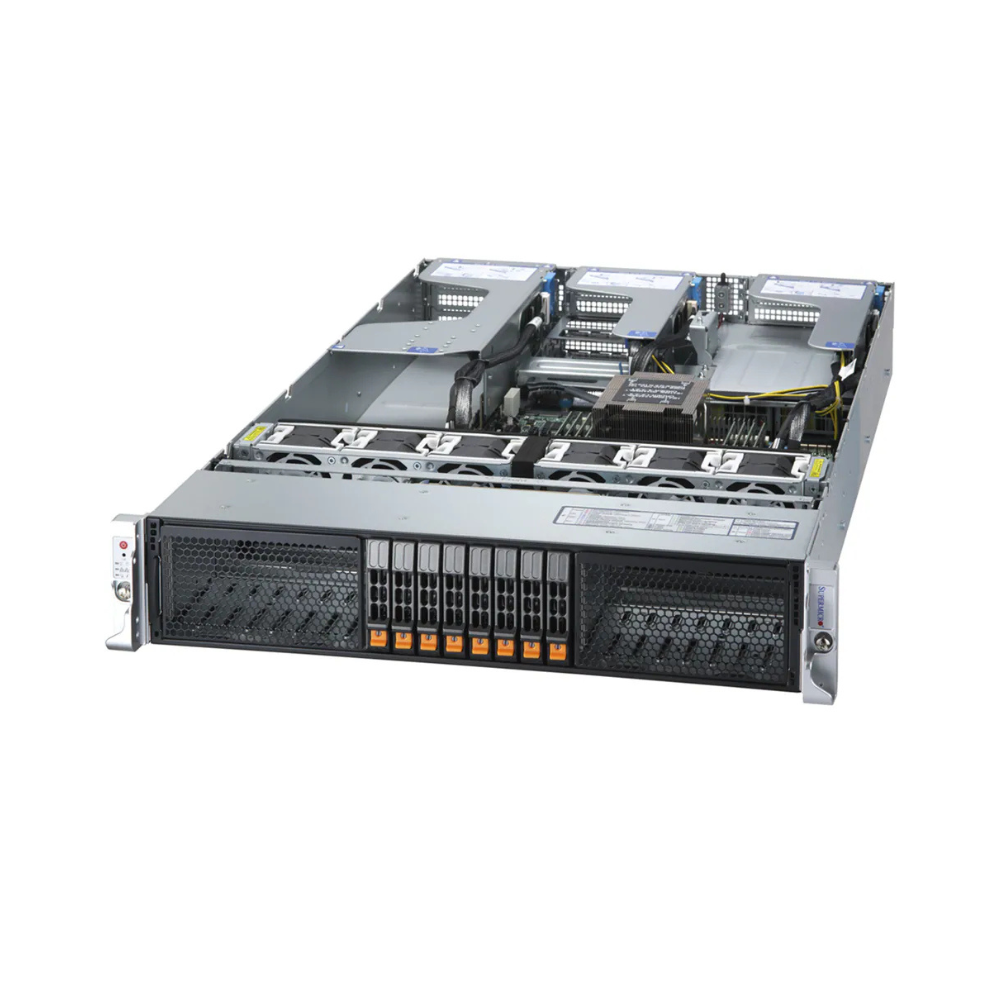

2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0

型号 : AS-2115HV-TNRT

数量 :

Product SKUs
A+ Workstation AS -2115HV-TNRT

Processor
CPU	Single Socket sTR5 (LGA-4844) AMD Ryzen™ Threadripper PRO 9000WX/7000WX series
Core Count	Up to 96C/192T; Up to 384MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width or 8 single-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 5000 Ada, RTX 4500 Ada, H200 NVL (141GB), RTX 4000 Ada Generation, RTX A6000, RTX 6000 Ada Generation, L40S, L4 AMD PCIe: Instinct™ MI210 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
Certification

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options

System BIOS
BIOS Type	AMI 256MB SPI Flash
BIOS Features	UEFI 2.8 SMBIOS 3.5 or later UEFI 2.9 Plug and Play (PnP) USB Keyboard support ACPI 6.5 SMBIOS 3.6 or later

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

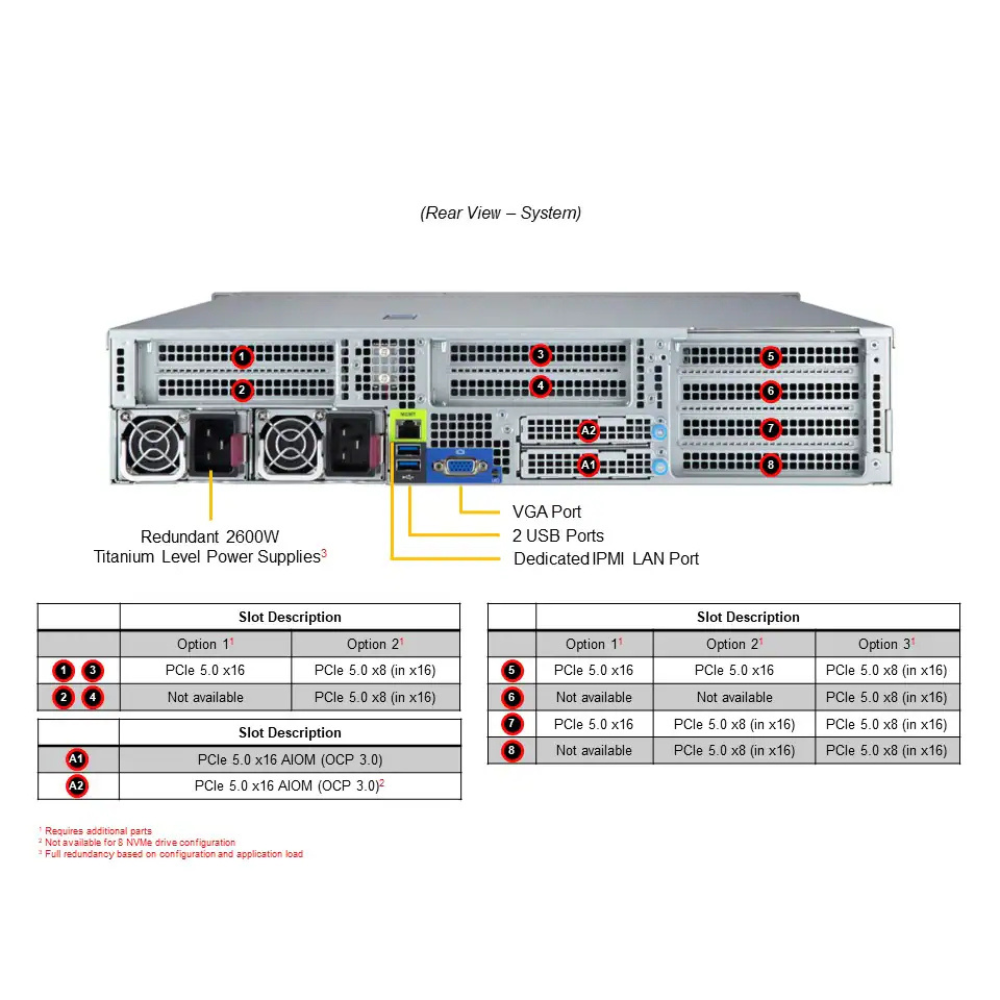

2600W Redundant Power Supplies Titanium Level Certified
Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series up to 350W TDP Processors, CPU and Memory Overclocking supported

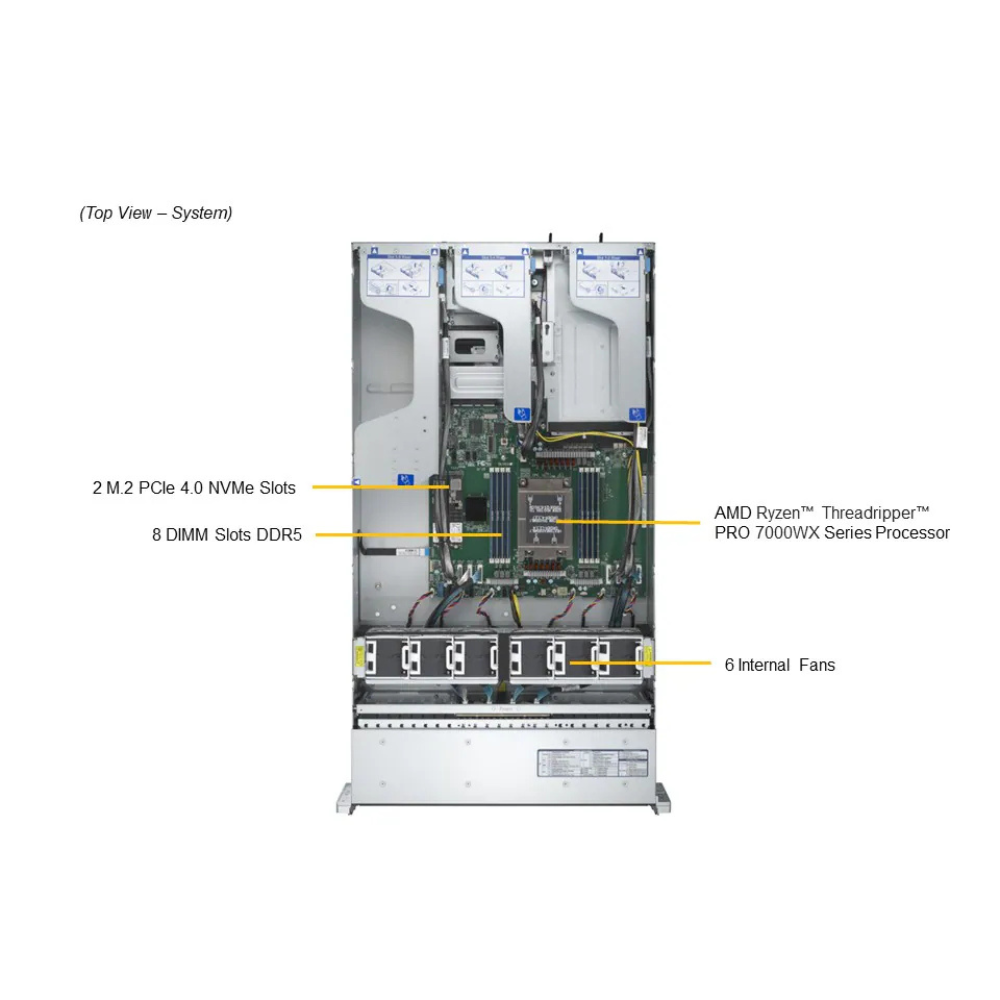

8 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MT/s Up to total 2TB
1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
Up to 4 PCIe 5.0 x16 FHFL slots or 8 PCIe 5.0 x8 FHFL slots

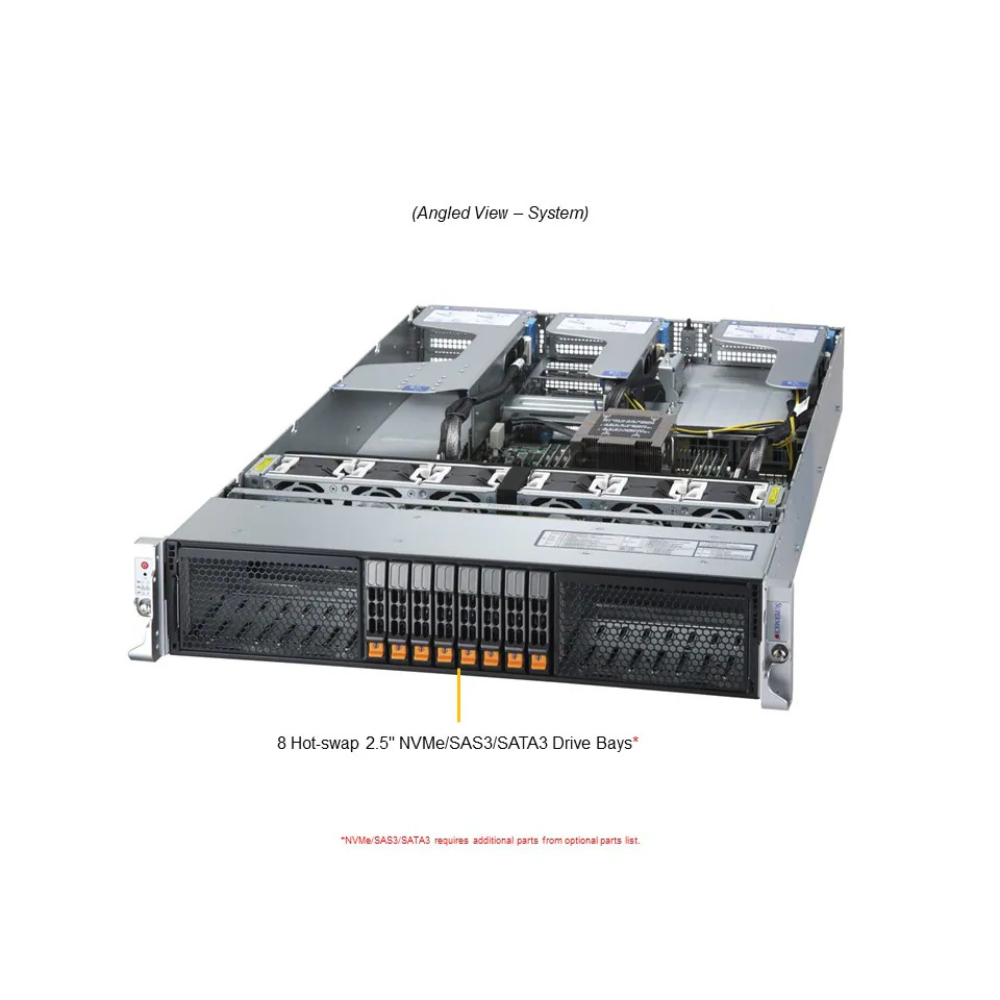

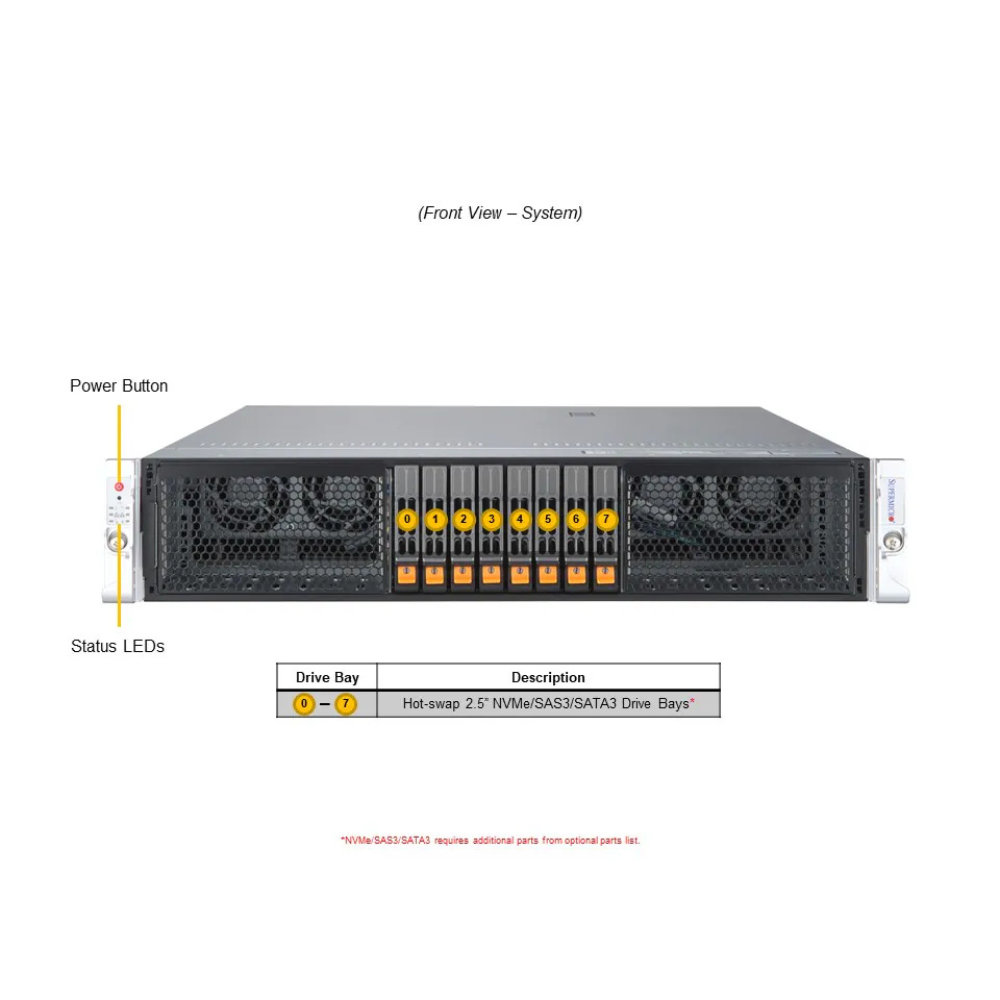

8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
