SYS-C542i-11682U

Mid-tower desktop AI PC optimized for fast, efficient, and accessible AI

型号 : SYS-C542i-11682U

数量 :

产品叙述
特点

Product SKUs
SYS-C542i-11682U

Processor
CPU	Single LGA-1851 Intel® Core™ Ultra (Series 2) U7-265, Max 5.30GHz
Core Count	P-cores: 8C/20T; 30MB Cache E-cores: 12C/20T
Note	Supports up to 65W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 triple-width or 1 double-width or 2 single-width GPUs

System Memory
Memory	Slot Count: 4 DIMM slots/4 Channels Max Memory (1DPC): 256GB 5600MT/s non-ECC DDR5 UDIMM
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	1 RJ45 1GbE with Intel® I219-LM

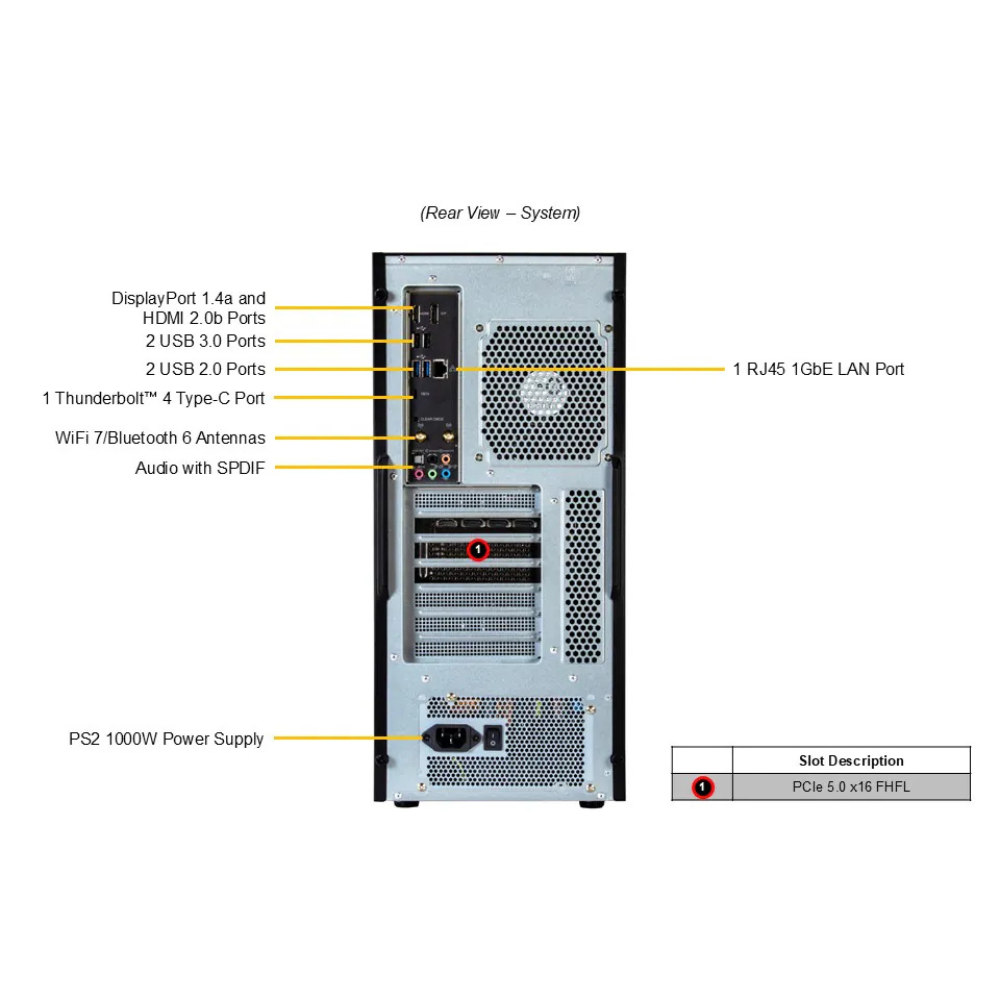

Input / Output
USB	2 USB 2.0 ports(header) 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 Thunderbolt™ 4 Type-C port(Rear) 1 USB 3.2 Gen2x2 Type-C port(Header)
Video	1 VGA port 1 HDMI 2.0b port 1 DisplayPort 1.4a port
Audio	Rear Audio

System BIOS
BIOS Type	AMI 32MB SPI Flash
BIOS Features	ACPI 6.0 Plug and Play (PnP) Riser Card audio detection support SMBIOS 3.0 or later

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation System Lockdown

PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature

Chassis
Form Factor	Mid-Tower
Model	CSE-GS3B-000NBP

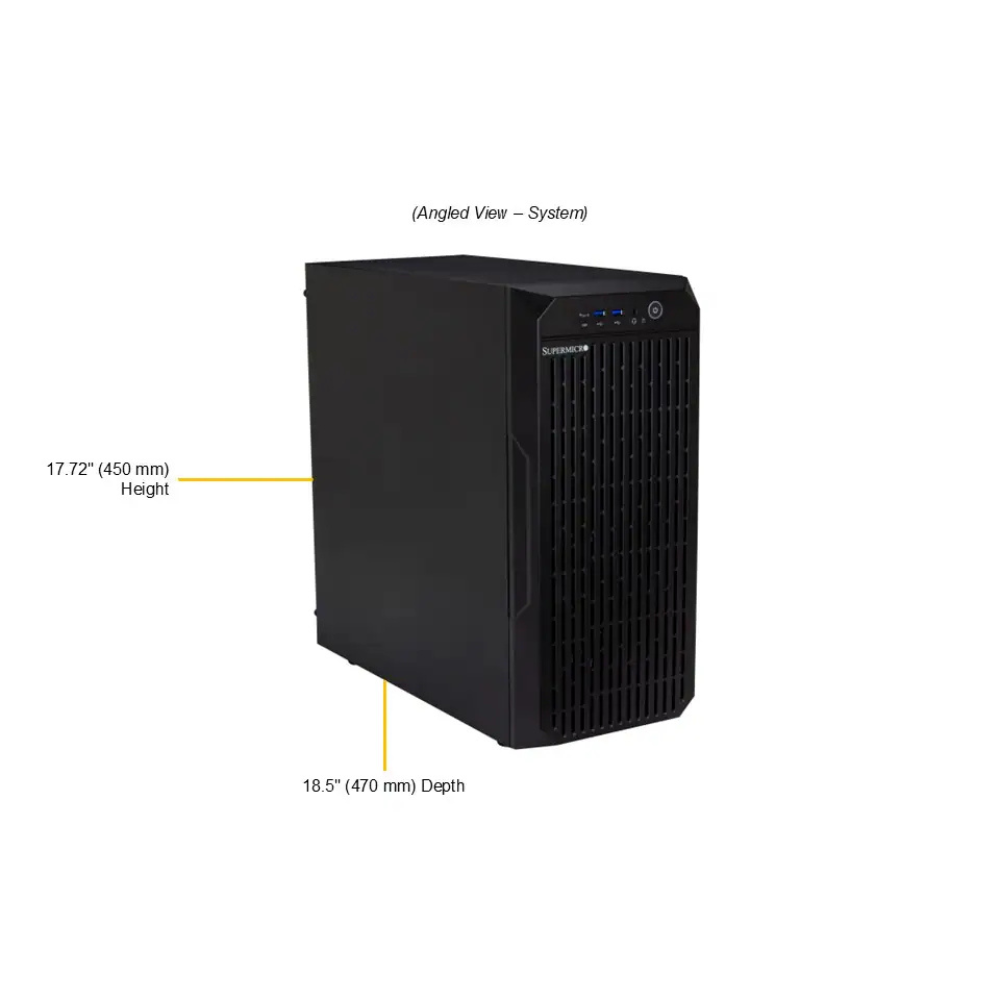

Dimensions and Weight
Height	17.72" (450 mm)
Width	8.07" (205 mm)
Depth	18.5" (470 mm)
Package	24.29" (H) x 12.8" (W) x 23.23" (D)
Weight	Gross Weight: 30 lbs (13.61 kg) Net Weight: 28 lbs (12.7 kg)
Available Color	Black

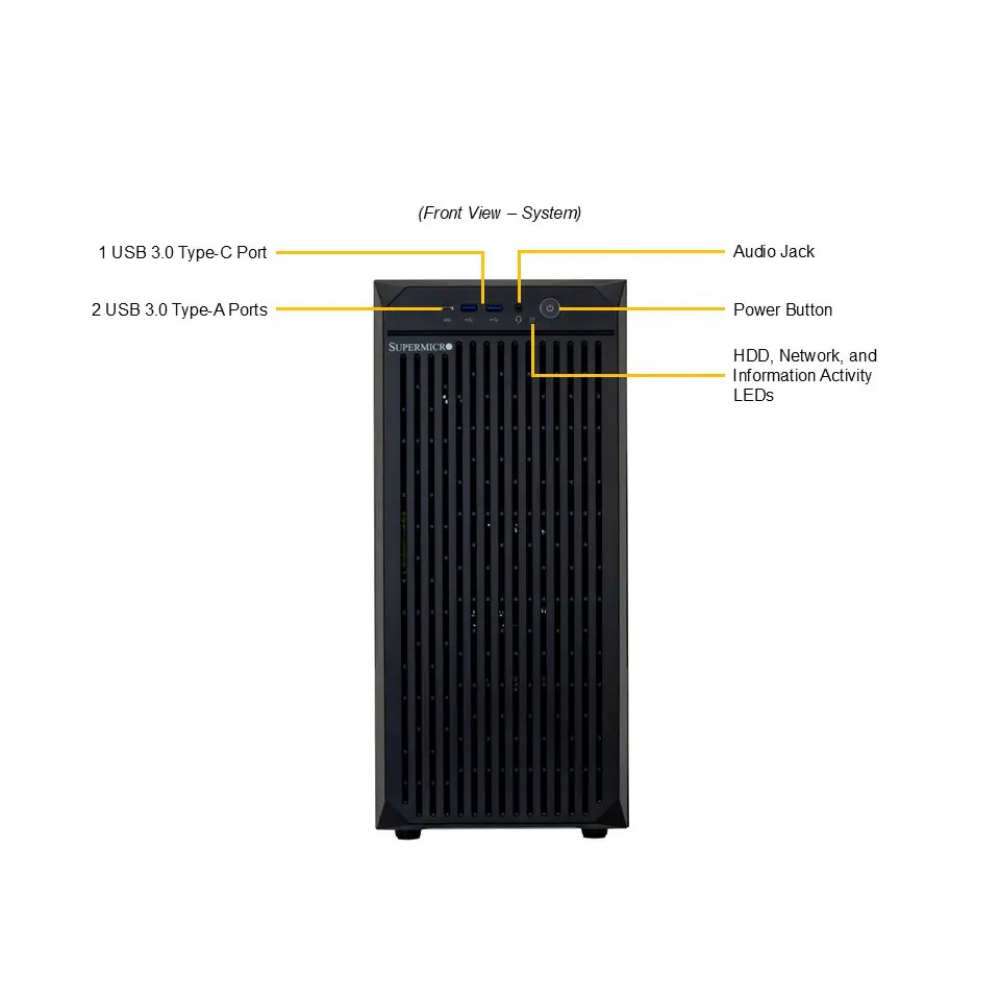

Front Panel
Port	Audio Jack-Combo microphone input / audio output port USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G) USB Type-C-USB 3.2 Gen 2X2 port (20G)
LED	HDD activity Power status LED
Buttons	Power On/Off

Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 5.0 x16 FHFL slot 2 PCIe 5.0 x8 FHFL slots
M.2	2 M.2 PCIe 4.0 x1 NVMe slots (M-key 2280(default))
PCI	1 PCI 5V 32-bit slots

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays Option A: Total 4 bays 4 front hot-swap 2.5" SATA drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

System Cooling
Fans	Up to 1 Rear 120mm Fan(s) Up to 3 Front 120mm Fan(s) Up to 3 Top 120mm Fan(s)

Power Supply

1x 1000W Gold Level (90%) power supply

Dimension (WxHxL)	150 x 86 x 140 mm
Input	1000W: 100-240Vac / 47-63Hz
+12V	Max: 83.3A / Min: 0A (100Vac-240Vac)
5V SB	Max: 3A / Min: 0A
Output Type	24pin ATX
Certification	Gold Level

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Single LGA-1851 Intel® Core™ Ultra 9/7/5 (Series 2) processors up to 65W with air cooling
Includes 1 NVIDIA RTX 5080 GPU
Up to 4 DIMMs supporting up to 256GB DDR5-5600 in 1DPC
Single LAN with Intel® Ethernet I219-VWi-Fi 7 + Bluetooth® 5.4
Up to 1 PCIe 5.0 x16 FHFL slots
Up to 4 front hot-swap 3.5" SATA drive bays
1 1000W Gold Level Power Supply
